#424XP4412S

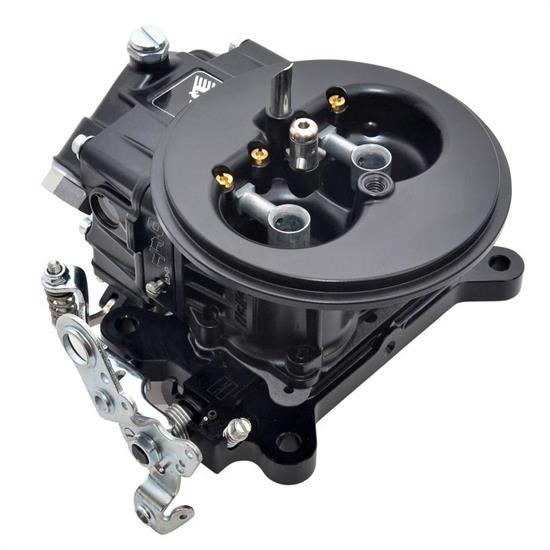

Quick Fuel XP-4412-S XP-Series Carburetor, 2-Barrel, Circle Track
- Designed specifically to meet the unique demands of circle track racing
- Features a high-flow aluminum main body is designed to center the venturi over the throttle-body assembly
- Equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life
Discontinued
This item is currently not available
Shop all Quick Fuel Black Diamond Q-Series Carburetors
Product Summary
2-Barrel Carburetor Barrels, Gasoline Fuel Type, Black
- Designed specifically to meet the unique demands of circle track racing
- Features a high-flow aluminum main body is designed to center the venturi over the throttle-body assembly
- Equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life
- Satin black finish adds an extra layer or protection and style
- Bolt pattern measures 5.160" x 3.460"
Key Specs
| Carburetor Barrels | 2-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 600-699 CFM |
| CFM | 600 CFM |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQuick Fuel Technology XP-4412-S Details
Quick Fuel Technology XP-4412-S Details
In circle track classes that mandate two-barrel carburetors, customizing a street carburetor has been the norm for decades. Not anymore. Designed from the ground up to meet the unique demands of circle track racing, QFT's new XP-Series offers the performance benefits of a custom carburetor in an affordable, turnkey, class-legal package. At a bare minimum, modifying a standard street carburetor for circle track duty typically involves changing the throttle-plates, floats, and metering blocks. These custom modifications can easily exceed the cost of a turnkey QFT two-barrel carb while still lacking many of the key features that only a clean-sheet redesign can offer. A high-flow aluminum main body design centers the venturi over the throttle-body assembly. To further increase airflow, QFT centers the air horn over the venturi, removes the choke tower, and carefully profiles the air inlet transition. The result is enhanced airflow and fuel distribution, which improves throttle-response and horsepower. All XP-Series carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life. Available in 500- and 600 cfm sizes, the XP-Series sets a new standard in two-barrel circle track carbs.
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Quick Fuel Technology XP-4412-S Specifications
Quick Fuel Technology XP-4412-S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XP-4412-S |
| Brand | Quick Fuel Technology |
| Carburetor Barrels | 2-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 600-699 CFM |
| CFM | 600 CFM |
| Carburetor Flange Type | 2-Barrel 4-Bolt |
| Finish | Black |
| Material Type | Aluminum |
| Color | Black |
| Secondary Type | None |
| Fuel Inlet Type | Single |
| New or Remanufactured | New |
| Throttle Linkage Type | Universal |
| Supercharged Application | No |
| GENERAL | |
| Booster | Annular |
| Bolt Hole Pattern | 5.160" x 3.460" |
| Carburetor Height | 3.25 |
| GTIN Code | 849804015434 |
| Sold in Quantity | Each |
