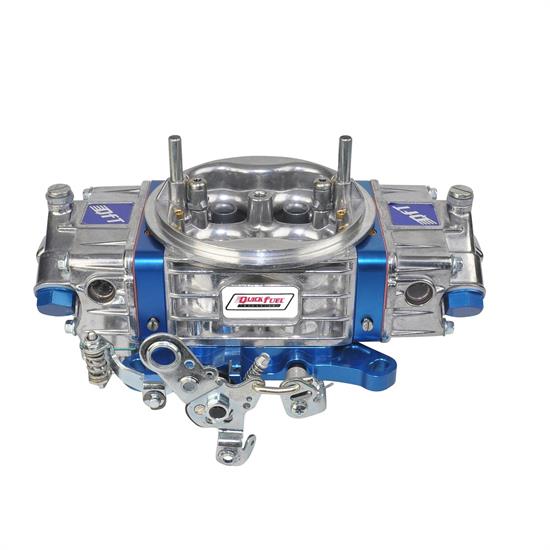

Quick Fuel Q-1050-CTA Q-Series Carburetor, 1050 CFM, CT Alcohol

Quick Fuel Q-1050-CTA Q-Series Carburetor, 1050 CFM, CT Alcohol
Universal Fit, 4-Barrel Carburetor Barrels, Alcohol Fuel Type, No Choke Choke Type, Aluminum
Factory Shipped
Ships FREE
Select Vehicle


Quick Fuel Q-1050-CTA Q-Series Carburetor, 1050 CFM, CT Alcohol
X

We estimate this item will ship on or before December 16th.
Part # 424Q1050CTA
$1,054.95
$1,172.95
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 2 business days for Quick Fuel Technology to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Details
Carburetor Barrels:
4-Barrel
Fuel Type:
Alcohol
Choke Type:
No Choke
CFM Range:
1,000-1,099 CFM
CFM:
1050 CFM
Carburetor Flange Type:
4-Barrel Square Bore
Finish:
Tumble Polished
Material Type:
Aluminum
Color:
Silver/Blue
Secondary Type:
Mechanical
Fuel Inlet Type:
Dual
New or Remanufactured:
New
Throttle Linkage Type:
Universal
Booster:
Down-leg
Bolt Hole Pattern:
5.160" x 5.625"
Carburetor Height:
3.25
Primary Power Valve:
4.5 Hg
Primary Jet Size:
154
Secondary Jet Size:
176
Primary Outer Air Bleed Sizes Included:
55
Primary Inner Air Bleed Sizes Included:
25
Secondary Outer Air Bleed Sizes Included:
55
Secondary Inner Air Bleed Sizes Included:
25
MFG. Part #:
Q-1050-CTA
GTIN Code:
849804000683
Sold in Quantity:
Each
Info
While modifying a street carburetor for circle track applications can work reasonably well, Quick Fuel Technology's Q-Series circle track carbs eliminates the guesswork and offer substantial advantages in adjustability, consistency, and predictability. Since racing around a banked oval pushes fuel to the passenger side of the car, Q-Series circle track carburetors feature die-cast aluminum fuel bowls with internal baffles that eliminate slosh. The bowls also feature an integrated fuel chute that substantially reduces aeration, and directs fuel toward the main jet pickup area. To assist in flattening out the fuel curve, screw-in air bleeds enable fine-tuning of both the low- and high-speed systems, while a proprietary booster design enhances carb signal without restricting high-rpm airflow. Helping drivers put the power down is an adjustable QuickLink system that allows changing the opening rate of the secondaries to 40-, 60-, or 100 percent. Circle track Q-Series carbs are available in 6 different sizes ranging from 650-1,050 cfm for both gasoline and alcohol applications. All Q-Series circle track carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life.
Some parts are not legal for use in California or other states with similar laws/regulations
