QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch

These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rods ride. Comes with steel coilover sleeves for the shock eyes to fit 1/2" bolts or 5/8" bolts. Springs NOT included.

• 15"-15-3/4" @ ride height
• 18-3/4" extended, 12-1/2" compressed
• Use 14" spring such as QA1 #25514-rateorAfco Springs
• Width of Mount Bushings:  1.25"

Note: Shock lengths represent approximate mounted length at ride height.

Item Details

15" - 15-3/4" @ ride height
18-3/4" ext. 12-1/2" comp. Use 14" spring.

Features:

• Billet aluminum shock body
• 5/8" centerless ground, hard chrome plated, solid piston rod
• Deflective Disc Valving
• 3-step sealing system
• 18-position adjuster knob changes the rebound valving
• Allows suspension control in one easy-to-reach location
• 100% dyno tested and serialized
• Revalveable and rebuildable by QA1 authorized service centers

Features:

• Billet aluminum shock body
• 5/8" centerless ground, hard chrome plated, solid piston rod
• Deflective Disc Valving
• 3-step sealing system
• 18-position adjuster knob changes the rebound valving
• Allows suspension control in one easy-to-reach location
• 100% dyno tested and serialized
• Revalveable and rebuildable by QA1 authorized service centers

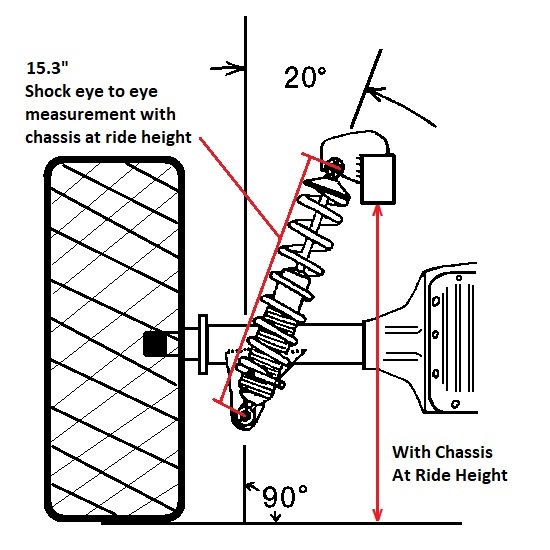

Coil Over Mounting Guide (GIF)

Coil Over Mount Illustration (GIF)
