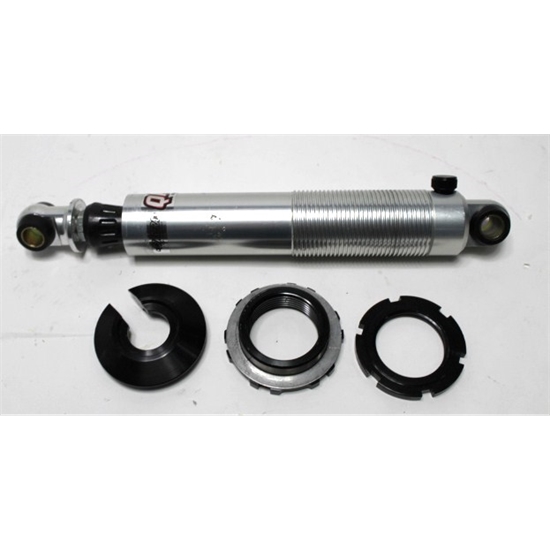

QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch

QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch

0 Reviews | 1 Answered Question
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
X
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
QA1 US602 Adjustable Shock and Coilover Kit w/o Spring, 15.3 Inch
Zoomed In Image
Part # UP63611
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Mounted Length:
12.00"

Info

This is garage sale priced because it was installed and returned.

No Warranty, No Returns on Garage Sale Items



These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rods ride. Comes with steel coilover sleeves for the shock eyes to fit 1/2" bolts or 5/8" bolts. Springs NOT included.

  • 15"-15-3/4" ride height
  • 18-3/4" extended, 12-1/2" compressed
  • Use 14" spring
  • Width of Mount Bushings:¬† 1.25"¬†

Note: Shock lengths represent approximate mounted length at ride height.

Coil Over Mounting Guide (GIF)

Coil Over Mount Illustration (Link)

Item Details

15" - 15-3/4" ride height
18-3/4" ext. 12-1/2" comp. Use 14" spring.

Notes

Features:

  • Billet aluminum shock body
  • 5/8" centerless ground, hard chrome plated, solid piston rod¬†
  • Deflective Disc Valving
  • 3-step sealing system
  • 18-position adjuster knob changes the rebound valving
  • Allows suspension control in one easy-to-reach location
  • 100% dyno tested and serialized
  • Revalveable and rebuildable by QA1 authorized service centers

Notes

  • Billet aluminum shock body
  • 5/8" centerless ground, hard chrome plated, solid piston rod
  • Deflective Disc Valving
  • 3-step sealing system
  • 18-position adjuster knob changes the rebound valving
  • Allows suspension control in one easy-to-reach location
  • 100% dyno tested and serialized
  • Revalveable and rebuildable by QA1 authorized service centers

Specs

Mounted Length:
15.3"
Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Upper Shock Mount:
5/8 Inch Eyelet
Lower Shock Mount:
5/8 Inch Eyelet
Compressed Length:
12.5"
Extended Length:
18.75"
Compressed Length Range:
12.00" to 12.99"
Extended Length Range:
18.00" to 18.99"
Spring Length:
14 Inch
Finish:
Polished
Mounted Length Range:
15 1/4" - 15 3/4"
MFG. Part #:
US602
Bushing Material:
Polyurethane
Sold in Quantity:
Each
Notes:
Includes sleeves so shock can be mounted with 1/2" bolts (bolts not included).
GTIN Code:
806990060907
Hardware Included:
Yes

Important Messages:

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
