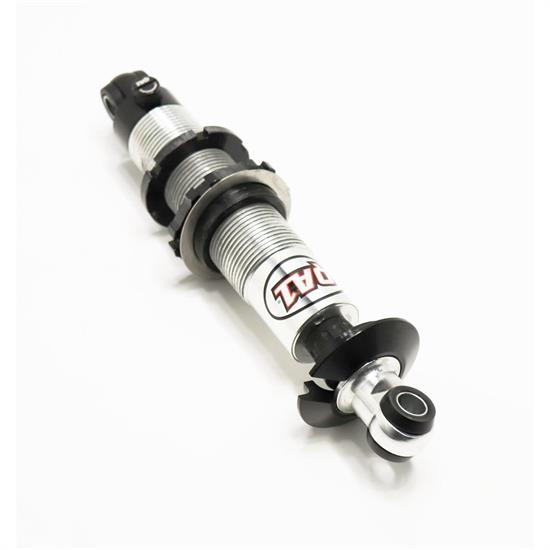

QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch

QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch

0 Reviews | 0 Answered Questions
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
X
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
QA1 US304 Adjustable Shock and Coilover Kit w/o Spring, 11 Inch
Zoomed In Image
Part # UP90098
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Mounted Length:
11.00"
Shock Body Material:
Aluminum
Compressed Length Range:
9.00" to 9.99"
Compressed Length:
9.50"
Extended Length Range:
12.00" to 12.99"
Extended Length:
12.75"
Finish:
Polished
Mounted Length Range:
10 3/4" - 11 1/4"
Shaft Diameter:
0.63"
Bushing Length:
1.25"
Overall Diameter:
3.25"
Sold in Quantity:
Each
Notes:
Includes both 1/2" and 5/8" hardware.
GTIN Code:
806990060822

Info

This is Garage Sale priced because it has been installed and returned.

These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rods ride. Comes with steel coilover sleeves for the shock eyes to fit 1/2" bolts or 5/8" bolts. Will accept a standard 2-1/2" or 2-5/8" i/d coil over spring. Springs NOT included.

  • Billet aluminum shock body
  • 5/8" centerless ground, hard chrome plated, solid piston rod¬†
  • Deflective Disc Valving
  • 3-step sealing system
  • 18-position adjuster knob changes the rebound valving
  • Allows suspension control in one easy-to-reach location
  • 100% dyno tested and serialized
  • Revalveable and rebuildable by QA1 authorized service centers
  • 10-3/4" - 11-1/4" ride height
  • 12-3/4" extended,¬†9-1/2" compressed
  • Use 8" spring
  • Width of Mount Bushings:¬† 1.25"¬†

Note: Shock lengths represent approximate mounted length at ride height.

Coil Over Mounting Guide (GIF)

Coil Over Mount Illustration (Link)

Item Details

10-3/4" - 11-1/4" ride height
12-3/4" ext. 9-1/2" comp. Use 8" spring.

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



Specs

Mounted Length:
11"
Shock Body Material:
Aluminum
Compressed Length:
9.5"
Extended Length:
12.75"
Compressed Length Range:
9.00" to 9.99"
Extended Length Range:
12.00" to 12.99"
Finish:
Polished
Mounted Length Range:
10 3/4" - 11 1/4"
Shaft Diameter:
.625"
Bushing Length:
1.25"
Overall Diameter:
3.25"
Sold in Quantity:
Each
Notes:
Includes both 1/2" and 5/8" hardware.
GTIN Code:
806990060822

Important Messages:

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

More Like This

Reviews

Q & A

Videos & Articles
  • In this episode, Project Chevelle gets coilovers and a much-needed altitude adjustment. Watch as we install QA1 bolt-on coilover kits front and rear, then dial in the perfect stance and shock settings. Our old Chevelle is really starting to look mean!
  • Product guru Jeff K. takes us along as he updates the suspension on his 1946 Ford Sedan Delivery with a set of fresh Mustang II coilovers following an unfortunate incident with a pothole.
  • Speedway Motors employee Steve is back to work on his 1976 Chevrolet Laguna, this time installing a QA1 Coilover kit in his front suspension.
  • See how Jeff converts his 1967 Chevelle rear suspension to QA1 double adjustable coil-over suspension. This allows added adjustability for ride height and compression and rebound characteristics.
