#721MVMR14

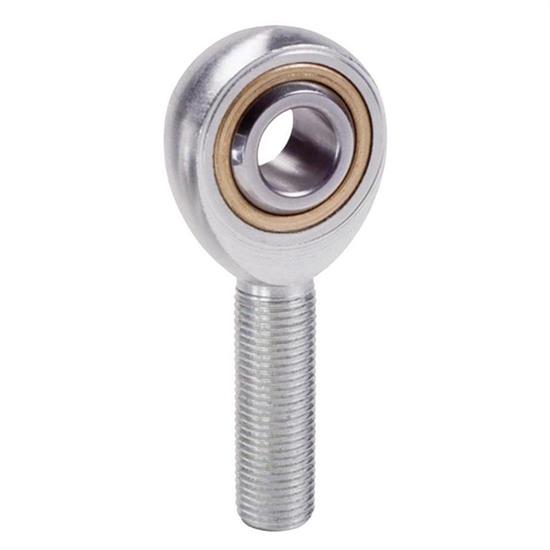

QA1 MVMR14 Metric V Series Rod End, Male, 14mm Bore, 14X2.0 6G RH
$21.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before March 31st.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
See more details
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 14mm x 2.0 |
| Material Type | Steel |
| Hole Diameter | 14 mm |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 MVMR14 Details
QA1 MVMR14 Details
QA1's Bronze Race Carbon Steel metric rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Sintered Bronze
- Oil Impregnated
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
QA1 MVMR14 Specifications
QA1 MVMR14 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | MVMR14 |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 14mm x 2.0 |
| Material Type | Steel |
| Hole Diameter | 14 mm |
| Rod End Style | Bronze Race |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 21 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 36 mm |
| Rod End Ball Diameter | 25.4 mm |
| Rod End Head Diameter | 34.75 mm |
| Rod End Head Width | 13.5 mm |
| Overall Thickness | 19 mm |
| Center Hole to End of Shank | 60 mm |
| Heat Treated | Yes |
| Radial Static Load | 44337 newtons |
| GTIN Code | 806990069177 |
| Sold in Quantity | Each |
