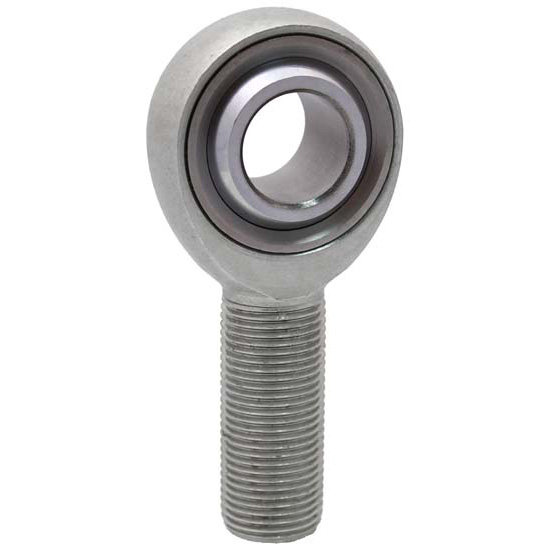

QA1 MHMR20-1 Metric H Series Rod Ends. Male, 20mm Bore, 20X1.5 6G RH
QA1 MHMR20-1 Metric H Series Rod Ends. Male, 20mm Bore, 20X1.5 6G RH

QA1 MHMR20-1 Metric H Series Rod Ends. Male, 20mm Bore, 20X1.5 6G RH

Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Aluminum

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 MHMR20-1 Metric H Series Rod Ends. Male, 20mm Bore, 20X1.5 6G RH
QA1 MHMR20-1 Metric H Series Rod Ends. Male, 20mm Bore, 20X1.5 6G RH
X
Zoomed In Image
We estimate this item will ship on or before April 25th.
Part # 721MHMR201
Save 12%
$43.99
$49.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
20mm x 2.5
Rod End Style:
Metal-to-metal
Rod End Construction:
3-piece
Thread Length:
1.625 mm
Material Type:
Aluminum
Finish:
Purple Anodized
Hole Diameter:
20 mm
Rod End Head Diameter:
1.5 mm
Rod End Head Width:
0.625 mm
Rod End Misalign Angle:
10 degrees
Center Hole to End of Shank:
2.625"
Jam Nut Included:
No
Grease Fitting:
No
Heat Treated:
Yes
Load Capacity:
15000 lbs.
Sold in Quantity:
Each
GTIN Code:
806990135131
MFG. Part #:
MHMR20-1

Info

QA1's MHM Series rod ends are a traditional three-piece chromoly steel male rod end. These precision rod ends are heat treated and are available in right and left hand threads. Grease fittings and stud configurations are available.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Chromoly Heat Treated
  • Steel Corrosion and Wear Resistant

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance
Some parts are not legal for use in California or other states with similar laws/regulations
