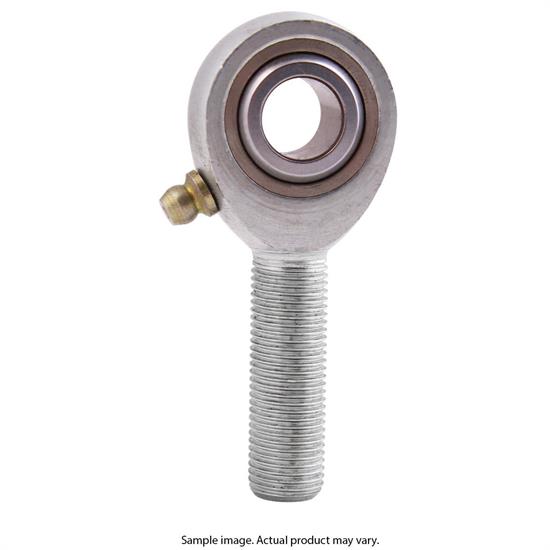

QA1 MHMR12Z-1 Metric H Series Rod Ends. Male, 12mm Bore, 12X1.75 6G RH, Zerk
QA1 MHMR12Z-1 Metric H Series Rod Ends. Male, 12mm Bore, 12X1.75 6G RH, Zerk

QA1 MHMR12Z-1 Metric H Series Rod Ends. Male, 12mm Bore, 12X1.75 6G RH, Zerk

Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Chromoly

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 MHMR12Z-1 Metric H Series Rod Ends. Male, 12mm Bore, 12X1.75 6G RH, Zerk
QA1 MHMR12Z-1 Metric H Series Rod Ends. Male, 12mm Bore, 12X1.75 6G RH, Zerk
X
Zoomed In Image
We estimate this item will ship on or before April 23rd.
Part # 721MHMR12Z1
Save 8%
$20.99
$22.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
12mm x 1.75
Rod End Style:
Metal-to-metal
Rod End Construction:
3-piece
Thread Length:
1.75 mm
Material Type:
Chromoly
Finish:
Zinc Plated
Hole Diameter:
12 mm
Rod End Head Diameter:
1.75 mm
Rod End Head Width:
0.875 mm
Rod End Misalign Angle:
14 degrees
Center Hole to End of Shank:
2.875"
Jam Nut Included:
No
Grease Fitting:
Yes
Heat Treated:
Yes
Load Capacity:
28081 lbs.
Sold in Quantity:
Each
GTIN Code:
806990134943
MFG. Part #:
MHMR12Z-1

Info

QA1's MHM Series rod ends are a traditional three-piece chromoly steel male rod end. These precision rod ends are heat treated and are available in right and left hand threads. Grease fittings and stud configurations are available.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Chromoly Heat Treated
  • Steel Corrosion and Wear Resistant

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance
Some parts are not legal for use in California or other states with similar laws/regulations
