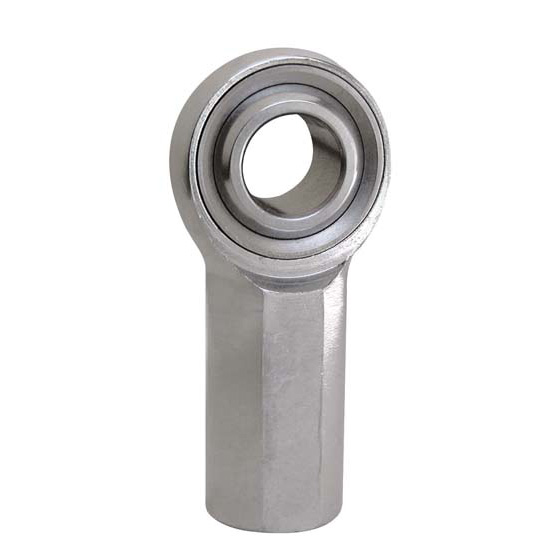

QA1 MHFL16T Metric H Series Rod End, Female, 16mm Bore, 16X2.0 6G LH
QA1 MHFL16T Metric H Series Rod End, Female, 16mm Bore, 16X2.0 6G LH

QA1 MHFL16T Metric H Series Rod End, Female, 16mm Bore, 16X2.0 6G LH

Universal Fit, LH Female Thread Type, Female Threads/Eyelet Rod End Attachment, Grease Fitting

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 MHFL16T Metric H Series Rod End, Female, 16mm Bore, 16X2.0 6G LH
QA1 MHFL16T Metric H Series Rod End, Female, 16mm Bore, 16X2.0 6G LH
X
Zoomed In Image
We estimate this item will ship on or before April 23rd.
Part # 721MHFL16T
Save 14%
$29.99
$34.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Thread Type:
LH Female
Rod End Attachment:
Female Threads/Eyelet
Thread Pitch:
16mm x 2.0
Rod End Style:
PTFE Lined
Rod End Construction:
3-piece
Thread Length:
33 mm
Hole Diameter:
16 mm
Rod End Ball Diameter:
28.58 mm
Rod End Head Diameter:
38 mm
Rod End Head Width:
21 mm
Rod End Misalign Angle:
23 degrees
Overall Thickness:
21 mm
Center Hole to End of Shank:
64 mm
Jam Nut Included:
No
Grease Fitting:
Yes
Heat Treated:
Yes
GTIN Code:
806990017017
MFG. Part #:
MHFL16T

Info

With a PTFE liner added to the traditional three-piece chromoly steel female rod end, QA1's MHF-T Series metric rod ends are ideal for a variety of applications. True precision rod ends, the MHF-T Series are available in right and left hand threads.

Ball

  • 52100 Bearing Steel
  • Heat Treated Hard Chrome Plated
  • Precision Ground

Race

  • Low Carbon Steel Corrosion and Wear Resistant
  • PTFE Lined

Body

  • Chromoly Steel
  • Heat Treated Protective Coated for Corrosion Resistance"
