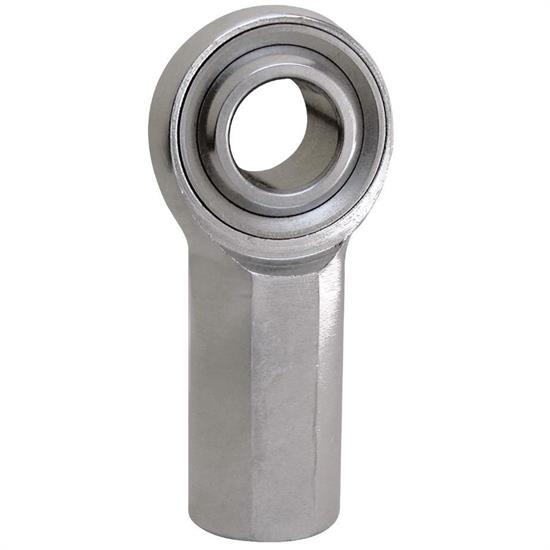

QA1 MHFL12T-1 Metric H Series Rod Ends. Female, 12mm Bore, 12X1.75 6G LH
QA1 MHFL12T-1 Metric H Series Rod Ends. Female, 12mm Bore, 12X1.75 6G LH

QA1 MHFL12T-1 Metric H Series Rod Ends. Female, 12mm Bore, 12X1.75 6G LH

Universal Fit, LH Female Thread Type, Female Threads/Eyelet Rod End Attachment

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 MHFL12T-1 Metric H Series Rod Ends. Female, 12mm Bore, 12X1.75 6G LH
QA1 MHFL12T-1 Metric H Series Rod Ends. Female, 12mm Bore, 12X1.75 6G LH
X
Zoomed In Image
We estimate this item will ship on or before May 28th.
Part # 721MHFL12T1
Save 12%
$21.99
$24.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Thread Type:
LH Female
Rod End Attachment:
Female Threads/Eyelet
Thread Pitch:
12mm x 1.75
Rod End Style:
Spherical Bearing
Rod End Construction:
3-piece
Thread Length:
24 mm
Hole Diameter:
12 mm
Rod End Ball Diameter:
22.23 mm
Rod End Head Diameter:
30 mm
Rod End Head Width:
16 mm
Rod End Misalign Angle:
17 degrees
Overall Thickness:
16 mm
Center Hole to End of Shank:
50 mm
Jam Nut Included:
No
Grease Fitting:
No
Heat Treated:
Yes
GTIN Code:
806990133564
MFG. Part #:
MHFL12T-1

Info

With a PTFE liner added to the traditional three-piece chromoly steel female rod end, QA1's MHF-T Series metric rod ends are ideal for a variety of applications. True precision rod ends, the MHF-T Series are available in right and left hand threads and studded configurations are available.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Low Carbon Steel
  • Corrosion and Wear Resistant
  • PTFE Lined

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance
Some parts are not legal for use in California or other states with similar laws/regulations
