Product Summary

Universal Fit, LH Female Thread Type, Stainless Steel

    Key Specs

    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5mm x 0.8
    Material TypeStainless Steel
    Hole Diameter5 mm

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

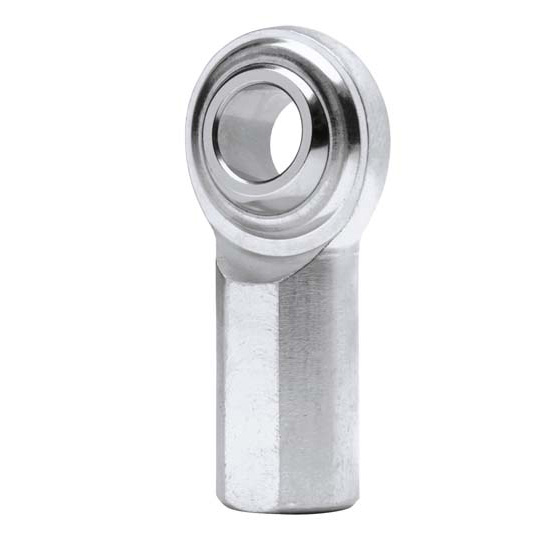

    QA1 MGFL5T Details

    QA1's MGF-T Stainless Steel Series metric female rod ends are PTFE lined two-piece rod ends. They are available in both right and left hand thread. Studded configurations are also available.


    Ball

    • 440C Stainless Steel
    • Heat Treated
    • Precision Ground

    Body

    • 300 Series Stainless Steel
    • PTFE Lined

    QA1 MGFL5T Specifications

    KEY SPECS
    MFG. Part #MGFL5T
    BrandQA1
    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5mm x 0.8
    Material TypeStainless Steel
    Hole Diameter5 mm
    Rod End StylePTFE Lined
    Rod End Construction2-piece
    Grease FittingNo
    FinishNatural
    ColorNatural
    Rod End Misalign Angle22 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length14 mm
    Rod End Ball Diameter11.1 mm
    Rod End Head Diameter16 mm
    Rod End Head Width5.75 mm
    Overall Thickness8 mm
    Center Hole to End of Shank27 mm
    Heat TreatedYes
    Load Capacity931 lbs.
    Radial Static Load4136 newtons
    GTIN Code806990069856
    Sold in QuantityEach
