#721KMR1220T

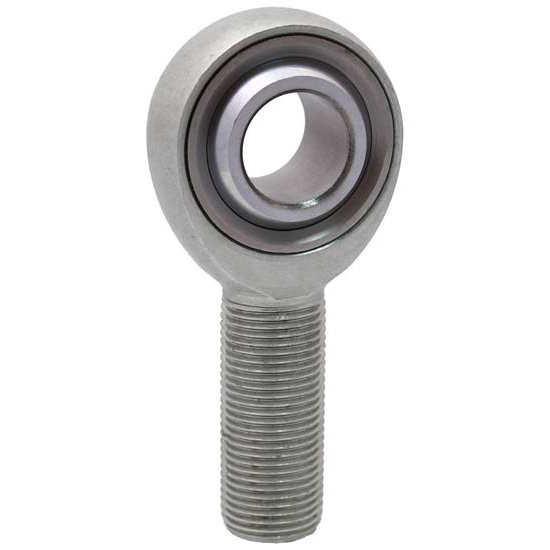

QA1 KMR12-20T K Series Rod End, Carbon Steel, 3-Piece, Each
$26.99
each
Discontinued
This item is currently not available
Shop all QA1 K Series Rod Ends
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
See more details
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/8"-14 |
| Material Type | Steel |
| Hole Diameter | 0.75" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 KMR12-20T Details
QA1 KMR12-20T Details
Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.
Ball:
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race:
- Alloy Steel
- Corrosion and Wear Resistant
- PTFE Lined
Body:
- Carbon Steel
- Protective Coated for Corrosion Resistance
QA1 KMR12-20T Specifications
QA1 KMR12-20T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | KMR12-20T |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/8"-14 |
| Material Type | Steel |
| Hole Diameter | 0.75" |
| Rod End Style | Heat-Treated Alloy Steel/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 14 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.750" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 0.875" |
| Heat Treated | Yes |
| Load Capacity | 11518 lbs. |
| GTIN Code | 0806990011367 |
| Sold in Quantity | Each |
