Product Summary

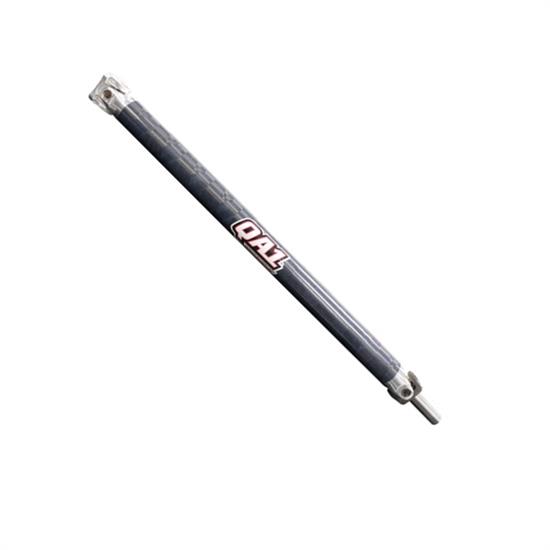

3.20" Overall Diameter, Carbon Fiber, Balanced

    Key Specs

    MFG. Part #JJ-21204
    BrandQA1

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    QA1's award-winning REVâ„¢ Series carbon fiber driveshafts are designed for vehicles with up to 750 HP with a max rated torque of 500 lb*ft and are designed specifically for:

    • 1979-1995 Mustangs and Capri 5.0L vehicles with T-5/SROD/C-4/AOD transmissions
    • 1979-1993 Mustangs with Tremec transmissions and 7.5" or 8.8" axles
    • 1996-2004 Mustangs
    • 1996-1998 Cobra 4.6L with manual transmissions

    QA1's Mustang driveshafts feature CNC machined forged tube yokes, Spicer Life Series U-Joints, a 28- or 31-spline slip yoke on the front and a lightweight rear flange yoke made from forged aluminum. The rear flange yoke is a four-bolt design that includes a 2.0" pilot diameter and a 3.5" bolt hole circle.

    What makes QA1's driveshaft the best?

    • A truly engineered system from transmission to rear end
    • Extended transmission and differential life
    • Quicker acceleration
    • More power to the ground
    • NVH testing helps eliminate driveline vibrations
    • Balanced as an assembly, ensuring a more precise and finer balance
    • Lighter and stronger than steel, aluminum and other carbon fiber driveshafts
    • Safer than steel and aluminum driveshafts
    • Proudly wound in-house using exclusive 3M Matrix Resin in QA1's Lakeville, Minnesota facility

    Specifications

    KEY SPECS
    MFG. Part #JJ-21204
    BrandQA1
    GENERAL
    Overall Diameter3.20"
    Material TypeCarbon Fiber
    BalancedYes
    AssembledYes
    Transmission Yoke IncludedYes
    Differential Yoke IncludedNo
    Transmission Joint Style1310 U-joint
    Differential Joint Style1310 U-joint
    Shaft Length45.50"
    Driveshaft StyleOne-Piece
    Sold in QuantityEach
    PositionRear
    GTIN Code806990132420
