Product Summary

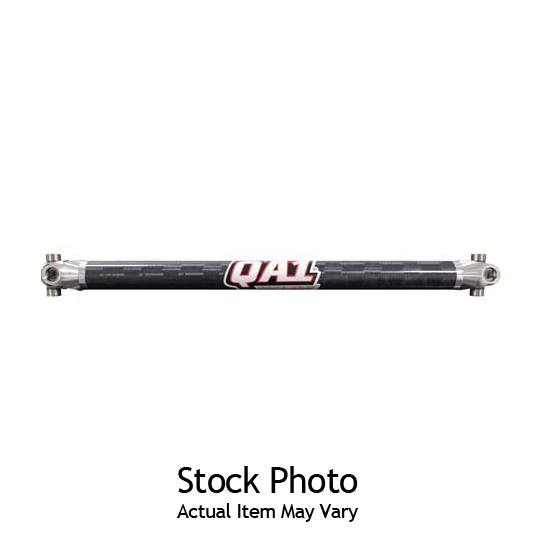

2.25" Overall Diameter, 29.5" Overall Length, Balanced

  • Driveshaft has a 2-1/4" diameter
  • Made with 3M Matrix resin
  • High-misalignment 7075 aluminum tube yokes
  • Lighter, stronger and safer than steel or aluminum driveshafts
  • Precision balanced and made in the U.S.A

Key Specs

MFG. Part #JJ-12210
BrandQA1

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

With a 2.25" diameter, and available in all popular lengths with U-joints and an optional slip yoke, QA1 carbon fiber driveshafts are lighter, stronger and safer than aluminum and steel driveshafts. QA1 specially winds the driveshafts with 3M Matrix Resin that is exclusive to QA1 driveshafts. 3M Matrix Resin uses spherical nanoscale silica that provides improved abrasion resistance and longevity, higher compressive strength and minimal water absorption for increased torque capacity and longevity. This resin is what gives a QA1 driveshaft its distinctive blue tint.

The driveshafts have a uniform wall thickness created by optimum fiber lay up that ensures high RPM stability as well as extreme torque capacities. A thoroughly engineered surface protection is used to withstand extreme racing environments and provide a worry-free performance. These driveshafts also feature Spicer Life Series® Universal Joints that are high strength alloy and provide durability, high torque capacity and are sealed for maximum strength and no maintenance. The high-misalignment 7075 aluminum tube yokes are precision CNC machined and are specially developed for QA1's 11 step bonding procedure that ensures a better balance. With their incredible strength and durable surface protection, you get worry-free performance season after season.

  • Made in the U.S.A.
  • Made with 3M Matrix Resin
  • Precision Balanced
  • Track Tested
  • Tested During and After Production
  • Spicer Life Series® Universal Joints
  • High-Misalignment 7075 Aluminum Tube Yokes
  • Lighter, Stronger and Safer than Steel or Aluminum Driveshafts

Charts

Specifications

KEY SPECS
MFG. Part #JJ-12210
BrandQA1
GENERAL
Overall Diameter2.25"
Overall Length29.5"
Material TypeCarbon Fiber
BalancedYes
AssembledYes
Transmission Yoke IncludedNo
Differential Yoke IncludedNo
Transmission Joint Style1310 U-joint
Differential Joint Style1310 U-joint
Driveshaft StyleOne-Piece
Sold in QuantityEach
PositionRear
GTIN Code806990127723
NotesDesigned for Dirt Modified applications.
