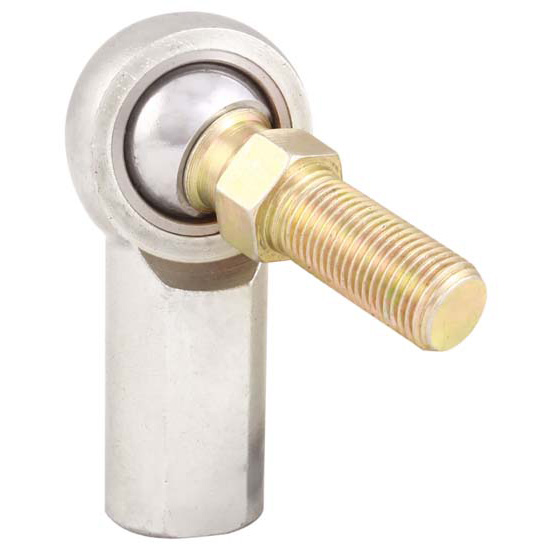

QA1 HFL5S H Series Three Piece Rod End, 5/16 Bore, LH 5/16-24 Threads, Stud
QA1 HFL5S H Series Three Piece Rod End, 5/16 Bore, LH 5/16-24 Threads, Stud

QA1 HFL5S H Series Three Piece Rod End, 5/16 Bore, LH 5/16-24 Threads, Stud

Universal Fit, LH Female Thread Type, Female Threads/Stud Rod End Attachment, Chromoly

0 Reviews | 1 Answered Question
Factory Shipped
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 HFL5S H Series Three Piece Rod End, 5/16 Bore, LH 5/16-24 Threads, Stud
QA1 HFL5S H Series Three Piece Rod End, 5/16 Bore, LH 5/16-24 Threads, Stud
X
Zoomed In Image
We estimate this item will ship on or before May 7th.
Part # 721HFL5S
Save 7%
$11.99
$12.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Thread Type:
LH Female
Rod End Attachment:
Female Threads/Stud
Thread Pitch:
5/16"-24
Rod End Style:
Metal-to-metal
Rod End Construction:
3-piece
Thread Length:
0.75"
Material Type:
Chromoly
Finish:
Zinc Plated
Hole Diameter:
0.313"
Rod End Head Diameter:
0.875"
Rod End Head Width:
0.437"
Rod End Misalign Angle:
14 degrees
Jam Nut Included:
No
Grease Fitting:
No
Heat Treated:
Yes
Load Capacity:
7638 lbs.
Sold in Quantity:
Each
GTIN Code:
806990047281
MFG. Part #:
HFL5S
Notes:
5/16"-24 Pivot stud thread

Info

Female 3-Piece Rod End QA1's HF Series female rod ends are a traditional three-piece chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions.

Ball

  • 52100 Bearing Steel
  • Heat Treated Hard Chrome Plated
  • Precision Ground

Race

  • Chromoly Heat Treated
  • Steel Corrosion and Wear Resistant

Body

  • Chromoly Steel
  • Heat Treated Protective Coated for Corrosion Resistance"
Some parts are not legal for use in California or other states with similar laws/regulations
