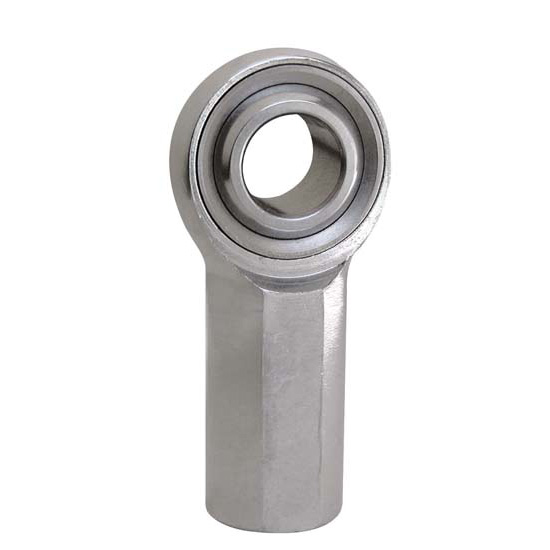

QA1 HFL10T H Series Three Piece Rod End, 5/8 Bore, LH 5/8-18 Threads
QA1 HFL10T H Series Three Piece Rod End, 5/8 Bore, LH 5/8-18 Threads

QA1 HFL10T H Series Three Piece Rod End, 5/8 Bore, LH 5/8-18 Threads

Universal Fit, LH Female Thread Type, Female Threads/Eyelet Rod End Attachment, Chromoly

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
QA1 HFL10T H Series Three Piece Rod End, 5/8 Bore, LH 5/8-18 Threads
QA1 HFL10T H Series Three Piece Rod End, 5/8 Bore, LH 5/8-18 Threads
X
Zoomed In Image
We estimate this item will ship on or before May 24th.
Part # 721HFL10T
Save 19%
$24.99
$30.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Thread Type:
LH Female
Rod End Attachment:
Female Threads/Eyelet
Thread Pitch:
5/8"-18
Rod End Style:
PTFE Lined
Rod End Construction:
3-piece
Thread Length:
1.5"
Material Type:
Chromoly
Finish:
Zinc Plated
Hole Diameter:
0.625"
Rod End Head Diameter:
1.5"
Rod End Head Width:
0.75"
Rod End Misalign Angle:
16 degrees
Jam Nut Included:
No
Grease Fitting:
No
Heat Treated:
Yes
Load Capacity:
17955 lbs.
Sold in Quantity:
Each
GTIN Code:
806990006271
MFG. Part #:
HFL10T

Info

With a PTFE liner added to the traditional three-piece chromoly steel female rod end, QA1's HF-T Series rod ends are ideal for a variety of applications. True precision rod ends, the HF-T Series are available in right and left hand threads and in metric and inch dimensions.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Low Carbon Steel
  • Corrosion and Wear Resistant
  • PTFE Lined

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance
Some parts are not legal for use in California or other states with similar laws/regulations
