Product Summary

Universal Fit, Twin Tube Shock Type, 1 Rebound Valving

    Key Specs

    MFG. Part #7561
    Shock TypeTwin Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeSmall Body

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

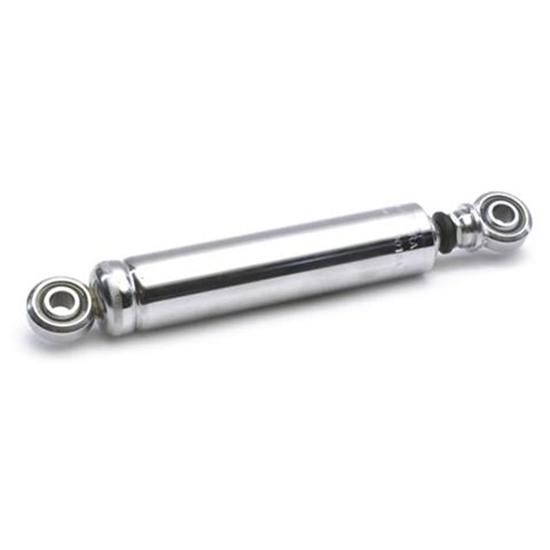

    A scaled down version of the 55 series, QA1’s 75 Series shock absorber has a classic look and classic performance in a smaller package. This is an excellent choice when clearance is an issue. Available in many popular valving options, this sealed shock conforms to track and series’ sealed shock rules.

    • 1 3/16” Piston is machined and processed per individual valve code specifications
    • 1/2” Hard chrome plated, polished piston rod
    • Twin tube design allows the outer tube to be dented without binding the shock
    • 1 5/8” O.D. Chrome plated steel body
    • Can be run in any orientation with no change in rate
    • Sealed design to conform to track and series rules
    • Replaceable 1/2" I.D. bearings

    Hyper Shock Application Chart (GIF)

    Coil-Over Illustration (GIF)



    Specifications

    KEY SPECS
    MFG. Part #7561
    BrandQA1
    Shock TypeTwin Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    GENERAL
    Shock Stroke Range6.00" to 6.99"
    Compression Valving1
    Rebound Valving1
    Shock Stroke6.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range17.00" to 17.99"
    Extended Length17.35"
    Compressed Length Range11.00" to 11.99"
    Compressed Length11.25"
    Schrader ValveNo
    FinishChrome
    Coil-Over CompatibleYes
    Body Diameter.165"
    Valve Positions1 compression - 1 rebound
    Bushing MaterialSteel
    Sold in QuantityEach
    Shock Eyelet Width.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
    GTIN Code
    Gas ChargedNo
    ColorNatural
