Part # 2553251

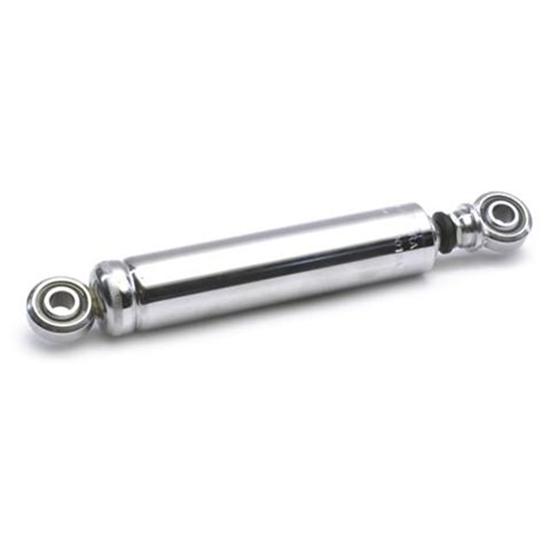

QA1 7551 75 Series Small Body Shock-5 In Stroke, Comp 1/Reb 1
by
QA1- 1-3/16” Piston is machined and processed per individual valve code specifications
- Features 1/2” hard chrome plated, polished piston rod
- 1/2" I.D. bearings are replaceable
See More
$99.99
each
Discontinued
This item is currently not available
Shop all QA1 75 Series Shocks
Product Summary
Universal Fit, Twin Tube Shock Type, 1 Rebound Valving
- 1-3/16” Piston is machined and processed per individual valve code specifications
- Features 1/2” hard chrome plated, polished piston rod
- 1/2" I.D. bearings are replaceable
- Twin tube design allows the outer tube to be dented without binding the shock
- Can be run in any orientation with no change in rate
See more details
Key Specs
MFG. Part # | 7551 |
Shock Type | Twin Tube |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Small Body |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
A scaled down version of the 55 series, QA1’s 75 Series shock absorber has a classic look and classic performance in a smaller package. This is an excellent choice when clearance is an issue. Available in many popular valving options, this sealed shock conforms to track and series’ sealed shock rules.
- 1 3/16” Piston is machined and processed per individual valve code specifications
- 1/2” Hard chrome plated, polished piston rod
- Twin tube design allows the outer tube to be dented without binding the shock
- 1 5/8” O.D. Chrome plated steel body
- Can be run in any orientation with no change in rate
- Sealed design to conform to track and series rules
- Replaceable 1/2" I.D. bearings
Charts
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 7551 |
Brand | QA1 |
Shock Type | Twin Tube |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Small Body |
GENERAL | |
Shock Stroke Range | 5.00" to 5.99" |
Compression Valving | 1 |
Rebound Valving | 1 |
Shock Stroke | 5.00 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Extended Length Range | 15.00" to 15.99" |
Extended Length | 15.09" |
Compressed Length Range | 10.00" to 10.99" |
Compressed Length | 10.12" |
Schrader Valve | No |
Finish | Chrome |
Coil-Over Compatible | Yes |
Body Diameter | 1.65" |
Valve Positions | 1 compression - 1 rebound |
Bushing Material | Steel |
Sold in Quantity | Each |
Shock Eyelet Width | .625" |
Bolt Hole Circle | .500" |
Hardware Included | No |
GTIN Code | |
Gas Charged | No |
Color | Natural |
