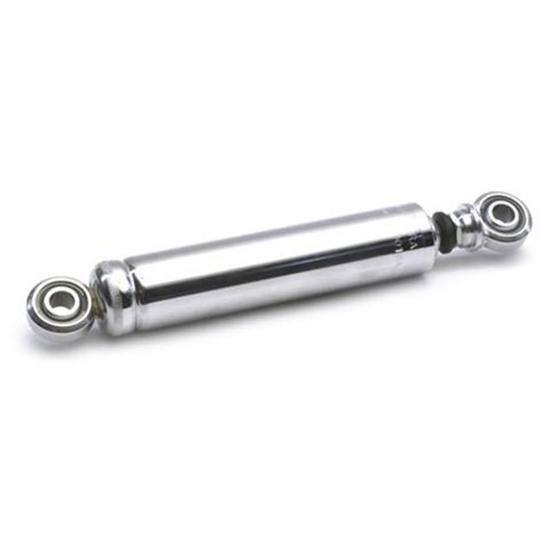

QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3
QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3

QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3

0 Reviews | 0 Answered Questions
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3
QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3
QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3
X
QA1 7543 55 Series Small Body Shock-4 In Stroke, Comp 3/Reb 3
Zoomed In Image
Part # 2553243
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Body Type:
Smooth
Shock Body Size:
Small Body
Shock Stroke Range:
4.00" to 4.99"
Compression Valving:
3
Rebound Valving:
3
Shock Stroke:
4.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length Range:
13.00" to 13.99"
Extended Length:
13.09"
Compressed Length Range:
9.00" to 9.99"
Compressed Length:
9.12"
Schrader Valve:
No
Finish:
Chrome
Coil-Over Compatible:
Yes
Body Diameter:
1.63"
Bushing Material:
Steel
MFG. Part #:
7543
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
No
Color:
Natural

Info

A scaled down version of the 55 series, QA1’s 75 Series shock absorber has a classic look and classic performance in a smaller package. This is an excellent choice when clearance is an issue. Available in many popular valving options, this sealed shock conforms to track and series’ sealed shock rules.

  • 1 3/16” Piston is machined and processed per individual valve code specifications
  • 1/2” Hard chrome plated, polished piston rod
  • Twin tube design allows the outer tube to be dented without binding the shock
  • 1 5/8” O.D. Chrome plated steel body
  • Can be run in any orientation with no change in rate
  • Sealed design to conform to track and series rules
  • Replaceable 1/2" I.D. bearings

Hyper Shock Application Chart (GIF)

Coil-Over Illustration (GIF)

Important Messages

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
