#72162991

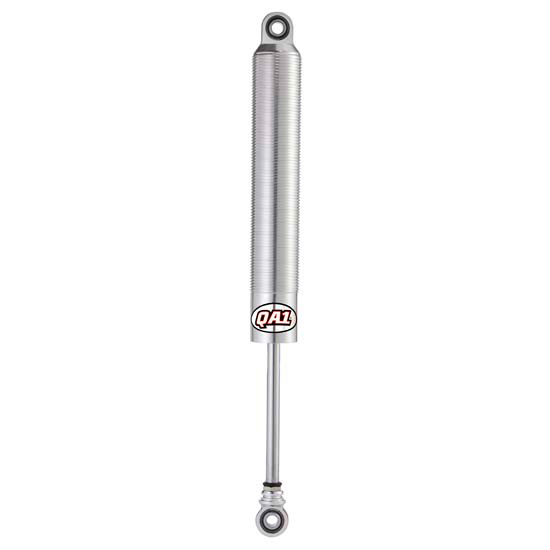

QA1 6299-1 62 Series Twin Tube Shock, 15.38/24.3 Comp/Ext, 9-1 Valving
by
QA1
$159.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before February 10th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Modified, Pavement Late Model
See more details
Key Specs
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
The 62 Series is a threaded body shock made of lightweight aluminum. Commonly used when a coil-over shock is needed in dirt or asphalt applications, these shocks will provide drivers with plenty of grip and feel. The 62 Series is often used on late models and modifieds and works best on average to dry-slick dirt and asphalt tracks where traction is limited.
- Large threaded twin tube body
- Racer revalveable and rebuildable
- Non-fading
- Deflective disc valving
- 2" O.D. lightweight aluminum body
- Can be run in any orientation with no change in rate
- Custom valving available
- 100% Dyno tested and serialized
- Made in the USA
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 6299-1 |
Brand | QA1 |
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Large Body |
GENERAL | |
Shock Stroke Range | 9.00" to 9.99" |
Compression Valving | 9 |
Rebound Valving | 1 |
Shock Stroke | 9.00 |
Upper Shock Mount | Spherical Rod End |
Lower Shock Mount | Spherical Rod End |
Extended Length Range | 24.00" to 24.99" |
Extended Length | 24.3" |
Compressed Length Range | 15.00" to 15.99" |
Compressed Length | 15.38" |
Schrader Valve | No |
Finish | Anodized |
Coil-Over Compatible | Yes |
Body Diameter | 2" |
Rebuildable | Yes |
Sold in Quantity | Each |
GTIN Code | 806990027252 |
Gas Charged | No |
Color | Silver |
