#72160757

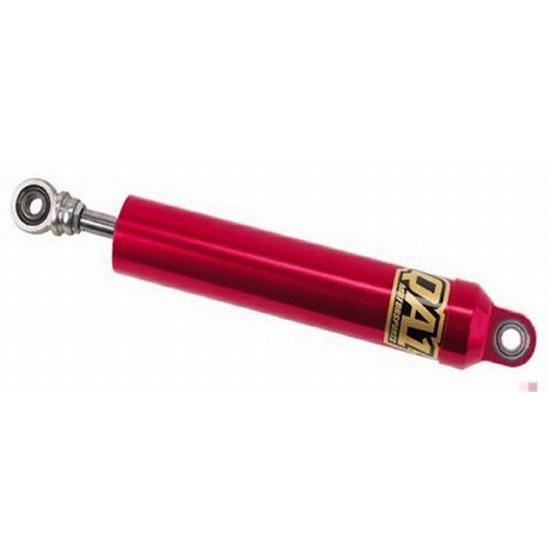

QA1 60757 Aluminum Smooth Body Shock, 7 Inch Stroke, 5/7 Valving
$159.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 4th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Sprint Car, Twin Tube Shock Type, 5 Compression Valving
See more details
Key Specs
| MFG. Part # | 60757 |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 60757 Details
QA1 60757 Details
The QA1 60 Series shock has a durable, lightweight 2" O.D. aluminum body which is ideal for sprint cars.
- Racer Revalveable and Rebuildable
- No Valving Overlap
- Precision Machined Piston with P.T.F.E. Piston Band
- 15mm Centerless Ground, Hard Chrome Plated, Solid Piston Rod
- Deflective Disc Valving
- Twin Tube Design
- 2" O.D. Lightweight Aluminum Body
- Replaceable 1/2" I.D. bearings
- Can Be Run Upside Down
- Use Large Body Tuning Kit # TK01 For Valve Combination Changes Between 0-13
- 100% Dyno Tested and Serialized
Item Details
Compressed Length: 13"Extended Length: 20"Compression/Rebound: 5/7Charts
QA1 Aluminum Shock Chart (GIF)
Guides & Documents
QA1 60757 Specifications
QA1 60757 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 60757 |
| Brand | QA1 |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| GENERAL | |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5 |
| Rebound Valving | 7 |
| Shock Stroke | 7.00 |
| Mount Position | Any |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13" |
| Schrader Valve | No |
| Finish | Anodized |
| Body Diameter | 2.00" |
| Valve Positions | 5 compression - 7 rebound |
| Rebuildable | Yes |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| GTIN Code | 806990014788 |
| Color | Silver |
