Part # 7216073

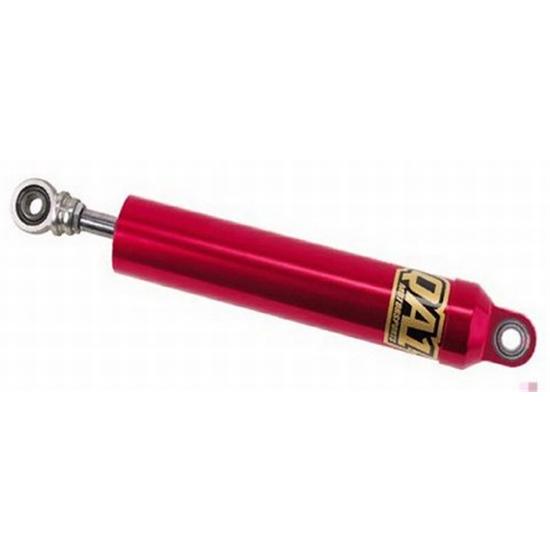

QA1 6073 Aluminum Smooth Body Shock, 7 Inch Stroke, 3/3 Valving

by

|

$159.95

each

In Stock

Order soon, only 1 left in stock!


Quantity

Select a vehicle to verify Fitment

Product Summary

Sprint Car, Twin Tube Shock Type, 3 Compression Valving

    Key Specs

    MFG. Part #6073
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    Shock Body TypeSmooth
    Shock Body SizeLarge Body

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    The QA1 60 Series shock has a durable, lightweight 2" O.D. aluminum body which is ideal for sprint cars.

    • Racer Revalveable and Rebuildable
    • No Valving Overlap
    • Precision Machined Piston with P.T.F.E. Piston Band
    • 15mm Centerless Ground, Hard Chrome Plated, Solid Piston Rod
    • Deflective Disc Valving
    • Twin Tube Design
    • 2" O.D. Lightweight Aluminum Body
    • Replaceable 1/2" I.D. bearings
    • Can Be Run Upside Down
    • Use Large Body Tuning Kit # TK01 For Valve Combination Changes Between 0-13
    • 100% Dyno Tested and Serialized

    Item Details

    Compressed Length: 13"Extended Length: 20"Compression/Rebound: 3/3

    Charts

    Specifications

    KEY SPECS
    MFG. Part #6073
    BrandQA1
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    GENERAL
    Shock Stroke Range7.00" to 7.99"
    Compression Valving3
    Rebound Valving3
    Shock Stroke7.00
    Mount PositionAny
    Upper Shock MountSpherical Rod End
    Lower Shock MountSpherical Rod End
    Extended Length Range20.00" to 20.99"
    Extended Length20"
    Compressed Length Range13.00" to 13.99"
    Compressed Length13"
    Schrader ValveNo
    FinishAnodized
    Body Diameter2.00"
    Valve Positions3 compression - 3 rebound
    RebuildableYes
    Bushing MaterialSteel
    Sold in QuantityEach
    Shock Eyelet Width.630"
    Bolt Hole Circle.500"
    GTIN Code806990014498
    ColorSilver
