Part # 25531719

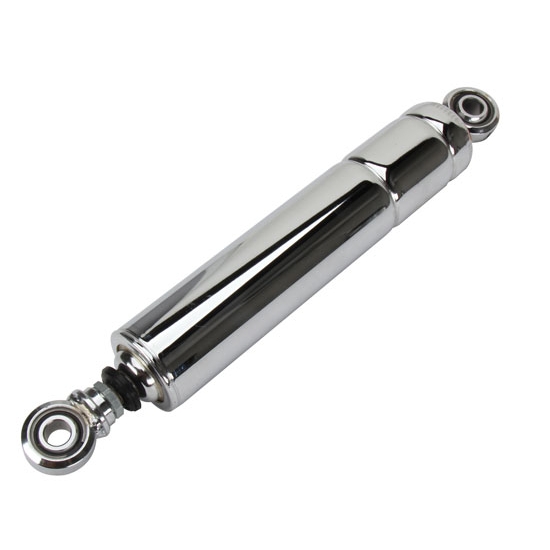

QA1 5579-1 55 Series Steel Replaceable Bearing Shock, 9/1 Comp/Reb

by

|

$102.56

each

Discontinued


This item is currently not available

Shop all QA1 55 Series Shocks

Product Summary

Universal Fit, Twin Tube Shock Type, 1 Rebound Valving

    Key Specs

    MFG. Part #5579-1
    Shock TypeTwin Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeLarge Body

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

    A scaled down version of the 55 series, QA1’s 75 Series shock absorber has a classic look and classic performance in a smaller package. This is an excellent choice when clearance is an issue. Available in many popular valving options, this sealed shock conforms to track and series’ sealed shock rules.

    • 1 3/16” Piston is machined and processed per individual valve code specifications
    • 1/2” Hard chrome plated, polished piston rod
    • Twin tube design allows the outer tube to be dented without binding the shock
    • 1 5/8” O.D. Chrome plated steel body
    • Can be run in any orientation with no change in rate
    • Sealed design to conform to track and series rules
    • Replaceable 1/2" I.D. bearings

    Charts

    Specifications

    KEY SPECS
    MFG. Part #5579-1
    BrandQA1
    Shock TypeTwin Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    GENERAL
    Shock Stroke Range7.00" to 7.99"
    Compression Valving9
    Rebound Valving1
    Shock Stroke7.00
    Upper Shock MountSpherical Rod End
    Lower Shock MountSpherical Rod End
    Extended Length Range19.00" to 19.99"
    Extended Length19.53"
    Compressed Length Range12.00" to 12.99"
    Compressed Length12.54"
    Schrader ValveNo
    FinishChrome
    Coil-Over CompatibleYes
    Body Diameter2.06"
    Valve Positions9 compression - 1 rebound
    Sold in QuantityEach
    NotesQA1 55 Series (previously Carrera Shocks 31 Series)
    Shock Eyelet Width.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
    GTIN Code
    Gas ChargedNo
