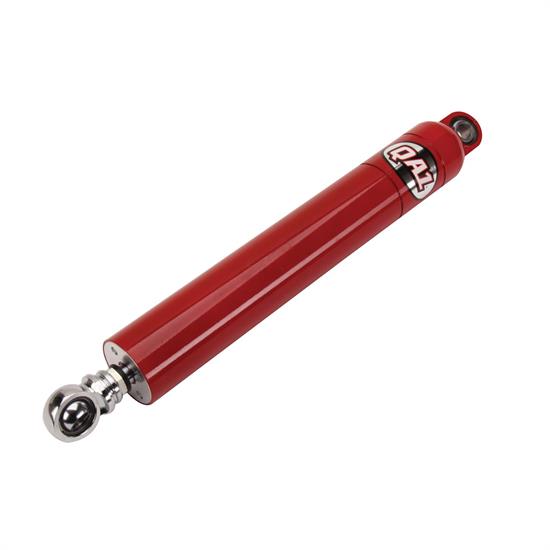

QA1 5194 51 Series Steel Twin Tube 9 Inch Shock, Comp/Reb 4/4

Ask a Question

Features a brand new in-house machined body
Shock has a large inside diameter for easy installation of gas bags
Has a zero gas pressure design providing the most grip on slick tracks and the best feel of any shock

Out of Stock

This item is currently not available

Shop all QA1 51 Series Shocks

Product Summary

Dirt Late Model, Modified, Pavement Late Model

Features a brand new in-house machined body
Shock has a large inside diameter for easy installation of gas bags
Has a zero gas pressure design providing the most grip on slick tracks and the best feel of any shock
Ideal for dirt and asphalt modifieds, late models and super stocks
They are 100% rebuildable and revalvable

See more details

Key Specs

Shock Type	Twin Tube
Shock Body Material	Steel
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

QA1 5194 Details

The best keep getting better! QA1 has taken your feedback, added new technology and developed an improved 50 Series shock absorber - the 51 Series. QA1’s 51 Series features a brand new in-house machined body, which has a large inside diameter for easy installation of gas bags. This twin tube shock absorber features hard anodized internals and has a zero gas pressure design providing the most grip on slick tracks and the best feel of any shock. Available in nine inch strokes, the 51 Series is the premium twin tube choice for dirt and asphalt modifieds, late models and super stocks. The 51 Series is manufactured in QA1’s Lakeville, MN facility and is completely racer rebuildable and revalveable.

Racer Revalveable & Rebuildable
Can Be Run Upside Down
Length - 9"

Note: Be sure to check compressed and extended lengths carefully for proper fit. QA1 lengths do not necessarily correspond to competitors’ lengths.

QA1 also offers these shocks in packages specific to a variety of series. Contact QA1 for more information.

Notes

Additional Piston Option: QA1 also offers a brand new high-flow linear two port piston for the 51 Series as an additional accessory. This two port piston design allows the valve discs to open consistently which results in a smoother force curve and accommodates independent compression and rebound bleed circuits for precision low-speed force control.

Related Products:

With the Large Body Tuning Kit (part# 721TK01) so you can change your shocks to any valving combination between 0 and 13.

CA Prop 65

QA1 5194 Specifications

KEY SPECS
MFG. Part #	5194
Brand	QA1
Shock Type	Twin Tube
Shock Body Material	Steel
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"
Compression Valving	4
Rebound Valving	4
Mount Position	Body-Up
Upper Shock Mount	Spherical Rod End
Lower Shock Mount	Spherical Rod End
Extended Length Range	24.00" to 24.99"
Extended Length	24.3"
Compressed Length Range	14.00" to 14.99"
Compressed Length	14.38"
Finish	Powder Coated
Coil-Over Compatible	Yes
Gas Charged	No

GENERAL
Shock Stroke	9.00
Schrader Valve	No
Body Diameter	2.06"
Rebuildable	Yes
Sold in Quantity	Each
Notes	Requires QA1 CK5009 Coil Over Kit (Speedway Part # 7215009) for coil over applications
Shock Eyelet Width	.625"
Hardware Included	No
GTIN Code	806990074348
Color	Red
