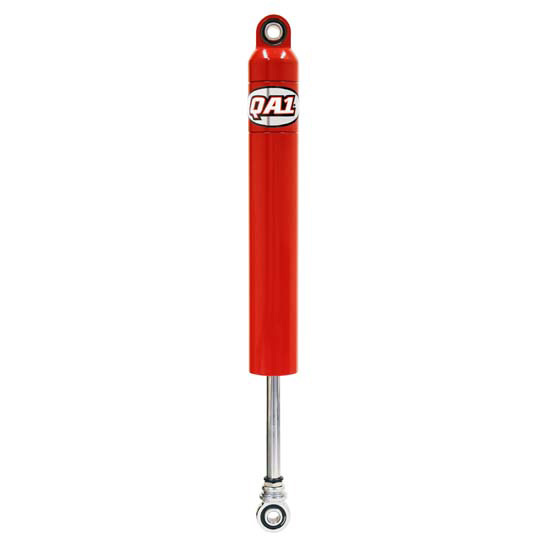

QA1 5174-8 51 Series Large Body Steel Shock, 4/8 Comp/Reb
QA1 5174-8 51 Series Large Body Steel Shock, 4/8 Comp/Reb
Dirt Late Model, Modified, Pavement Late Model, Twin Tube Shock Type, Steel Shock Body Material
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
QA1 5174-8 51 Series Large Body Steel Shock, 4/8 Comp/Reb
X
We estimate this item will ship on or before October 16th.
Part # 72151748
$157.95
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Body Type:
Smooth
Shock Body Size:
Large Body
Shock Stroke Range:
7.00" to 7.99"
Compression Valving:
4
Rebound Valving:
8
Shock Stroke:
7.00
Mount Position:
Body-Up
Upper Shock Mount:
Spherical Rod End
Lower Shock Mount:
Spherical Rod End
Extended Length Range:
20.00" to 20.99"
Extended Length:
20.3"
Compressed Length Range:
13.00" to 13.99"
Compressed Length:
13.38"
Schrader Valve:
No
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.06"
Rebuildable:
Yes
MFG. Part #:
51748
Sold in Quantity:
Each
Notes:
Requires QA1 CK5009 Coil Over Kit (Speedway Part # 7215009) for coil over applications
Gas Charged:
No
Boot Included:
No
Color:
Red
Info
Introduced in 2013, QA1's 51 Series is an improved version of the popular 50 Series. The 51 Series features an in-house machined body with a larger inside diameter for increased oil volume for better cooling. Crafted with hard anodized internals and a zero gas pressure design, the 51 Series provides the most grip on slick tracks and the best feel of any shock. Popular choice for many racers from dirt and asphalt in nearly every type of class. Works best on dry-slick dirt and asphalt tracks where traction is limited and also as an axle wrap up shock. Gives superior feel and grip on smooth asphalt tracks.
- 2-1/16" Steel twin tube body
- Deflective disc valving
- Linear valving provides a more stable car and allows the driver to feel the car better
- Racer revalveable and rebuildable designed for unparalleled repeatability
- Custom valving available
- Non-fading
- 100% Dyno tested & serialized
- Made in the USA
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 15 business days for QA1 to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
