Part # 721209512H

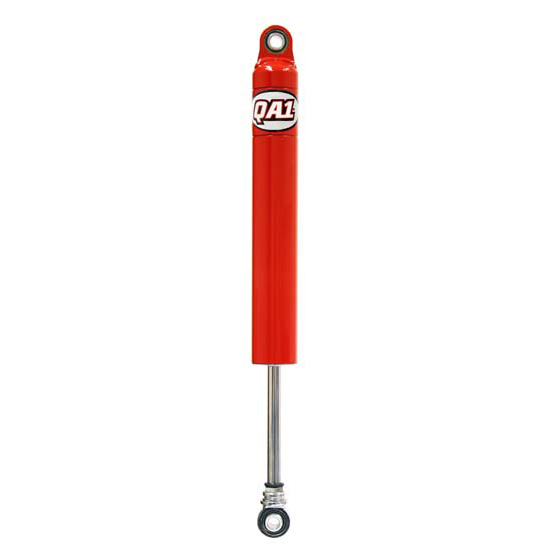

QA1 2095-12H 20 Series Shock, 9in Stroke, 15.7/24.7 Comp/Ext, 5-12H Valving

by

|

$114.99

each

Discontinued

$124.95

Save $9.96


This item is currently not available

Shop all QA1 20 Series Shocks

Product Summary

Modified, Stock Car, Mono Tube Shock Type

    Key Specs

    MFG. Part #2095-12H
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeLarge Body

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    Are you racing in a series that requires a sealed shock? QA1's 20 Series Sealed Monotube Shock is exactly what you need. This sealed monotube shock has a precision machined bearing mount, providing ample clearance and increased strength over other designs.

    By building each of the 20 Series shocks in our state-of-the-art manufacturing facility in Lakeville, MN, we're able to provide a sealed shock absorber that features the kind of valving that you want for your particular application. So you can now choose the valving that works specifically for you. The 20 Series is the highest quality sealed monotube shock available with custom valving on the market.

    20 Series Sealed Monotube Shock Features:

    • 2" O.D. one piece steel body
    • Sealed design to conform to track and series rules
    • Made in the USA
    • 100% Dyno tested and serialized
    • Deflective disc valving
    • Non-fading Linear and digressive valving available Custom valving available

    Notes:

    Linear Vs. Digressive Pistons The linear piston creates a force curve that features an increase in force directly related to an increase in speed -- the quicker the shock moves, the stiffer it becomes. The digressive piston creates a force that does not increase proportionately to an increase in speed -- the force curve does not increase directly related to shock speed.

    Specifications

    KEY SPECS
    MFG. Part #2095-12H
    BrandQA1
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    GENERAL
    Shock Stroke Range9.00" to 9.99"
    Stroke9"
    Compression Valving5
    Rebound Valving12H
    Shock Stroke9.00
    Upper Shock MountSpherical Rod End
    Lower Shock MountSpherical Rod End
    Extended Length Range24.00" to 24.99"
    Extended Length24.7"
    Compressed Length Range15.00" to 15.99"
    Compressed Length15.7"
    Schrader ValveNo
    FinishPowder Coated
    Sold in QuantityEach
    Gas ChargedYes
    ColorRed
