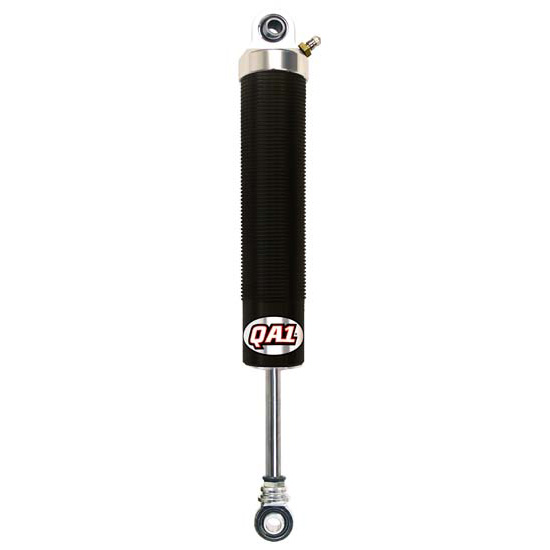

QA1 1694-6M 16 Series Monotube Shock, 15.38/24.13 Comp/Ext, 4-6M Valving
Dirt Late Model, Pavement Late Model, Mono Tube Shock Type, Aluminum Shock Body Material
- This item ships directly from the manufacturer. It may take an additional 10 business days for QA1 to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
The 16 Series shock is a threaded large body shock that is built to last at an affordable price. Adjust your gas pressure on-the-fly with the Schrader valve to help adapt to changing track conditions. Featuring a hard anodized 6061 aluminum threaded body that provides excellent corrosion resistance and superior hardness, this shock is designed to be a top performer for years. The 16 Series is a great shock for late models. Works best on rough, heavy and average dirt race tracks as well as bumpy asphalt tracks.
- 2" O.D. hard anodized aluminum threaded monotube body
- Linear or digressive valving available
- Schrader valve to easily adjust your gas pressure on the fly
- Deflective disc valving
- Racer rebuildable and revalveable
- Custom valving available
- 100% dyno tested
- Made in the USA
Linear, Digressive and Linear Digressive Valving Available
Digressive is the classic monotube shock feel. Linear provides a more stable car and allows the driver to feel the car better. Linear Digressive is an excellent choice when maximum rebound force is needed for big, low speed, tie-down applications.
Additional Piston Options
QA1 also offers the new Hi-Lo piston as an additional accessory. The Hi-Lo piston features kidney shaped ports on one face and round ports on the other, allowing the piston to be flipped to create a softer curve on one side coupled with a stiffer curve on the other side.
