Key Specs

MFG. Part #SB531
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

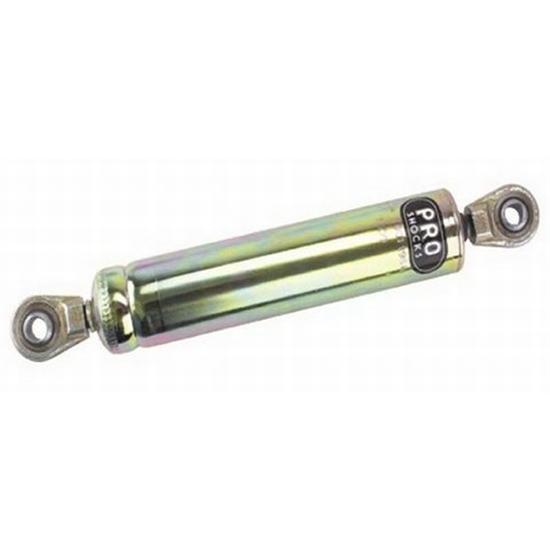

Pro Steel small body shocks have a non-adjustable zinc plated gas cell shock. Carbon steel shaft is chromed and centerless ground for longer seal life. Features a unique 1/2" removable bearing mount. Shocks are sold less bearing ends. OK for use with coil overs.  1.63 diameter.

5" Stroke -- Compression Length: 10.65", Extension Length: 15.65"

Pro Small Steel Shock Chart Application (GIF)

Specifications

KEY SPECS
MFG. Part #SB531
BrandPro Shocks
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body
GENERAL
Shock Stroke Range5.00" to 5.99"
Compression Valving3
Rebound Valving1
Shock Stroke5.00
Upper Shock Mount1/2" Spherical Rod End
Lower Shock Mount1/2" Spherical Rod End
Extended Length Range15.00" to 15.99"
Extended Length15.65"
Compressed Length Range10.00" to 10.99"
Compressed Length10.65"
FinishZinc Plated
Coil-Over CompatibleYes
Body Diameter1.63"
Valve Positions3 compression - 1 rebound
Bushing MaterialSteel
Sold in QuantityEach
NotesShock ends are sold separately, requires two of part# 582275.
Shock Eyelet Width.63"
Bolt Hole Circle.50"
Hardware IncludedNo
