Part # 582SB53

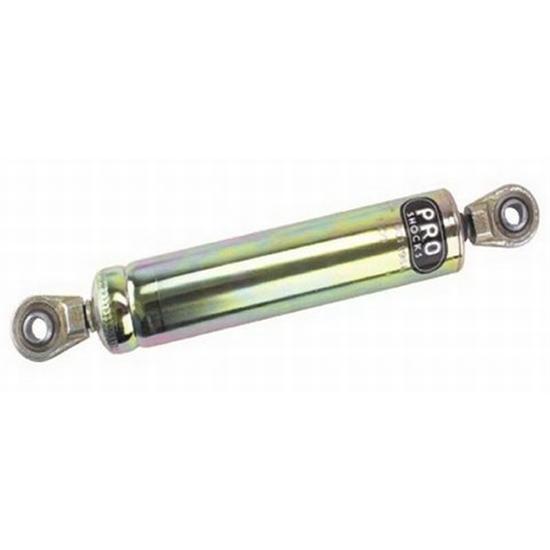

Pro Shocks SB53 Pro Small Body Steel Shock-5 In. Stroke, Comp 3, Reb 3
by
$66.99
each
Discontinued
This item is currently not available
Shop all Shocks
Key Specs
MFG. Part # | SB53 |
Shock Type | Twin Tube |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Small Body |
See more specs
Need To Know
Free Shipping on Orders Over $149
Quick and Easy Returns
Details
Details
Pro Steel small body shocks have a non-adjustable zinc plated gas cell shock. Carbon steel shaft is chromed and centerless ground for longer seal life. Features a unique 1/2" removable bearing mount. Shocks are sold less bearing ends. OK for use with coil overs. 1.63 diameter.
5" Stroke -- Compression Length: 10.65", Extension Length: 15.65"
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | SB53 |
Brand | Pro Shocks |
Shock Type | Twin Tube |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Small Body |
GENERAL | |
Shock Stroke Range | 5.00" to 5.99" |
Compression Valving | 3 |
Rebound Valving | 3 |
Shock Stroke | 5.00 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Extended Length Range | 15.00" to 15.99" |
Extended Length | 15.65" |
Compressed Length Range | 10.00" to 10.99" |
Compressed Length | 10.65" |
Finish | Zinc Plated |
Coil-Over Compatible | Yes |
Body Diameter | 1.63" |
Valve Positions | 3 compression - 3 rebound |
Bushing Material | Steel |
Sold in Quantity | Each |
Notes | Shock ends are sold separately, requires two of part# 582275. |
Shock Eyelet Width | .63" |
Bolt Hole Circle | .50" |
Hardware Included | No |
