#582AC95.05B

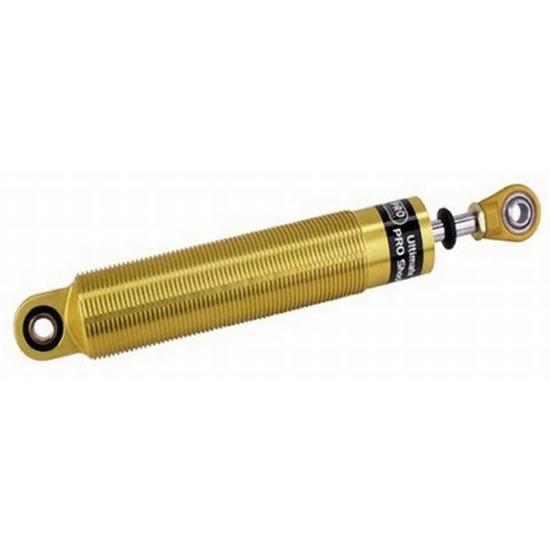

Pro Shocks® AC95.05 Pro Threaded Large Body 9 In Shock-5/0.5
$224.99
each
In Stock
Order soon, only 2 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Twin Tube Shock Type, Anodized
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks AC95.05B Details
Pro Shocks AC95.05B Details
Threaded aluminum body shocks are just the ticket for late models. Sold with bearing ends.
- 9" stroke
- 2.00 diameter shocks
- 14-3/4" comp. length
- 23-1/2" ext. length
Charts
Guides & Documents
Pro Shocks AC95.05B Specifications
Pro Shocks AC95.05B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AC95.05B |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 5 |
| Rebound Valving | 0.5 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.75" |
| Finish | Anodized |
| Coil-Over Compatible | Yes |
| External Canister | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 582-AC95.05B |
| Shock Stroke | 9.00 |
| Schrader Valve | No |
| Body Diameter | 2" |
| Rebuildable | Yes |
| Sold in Quantity | Each |
