#582AC94.5B

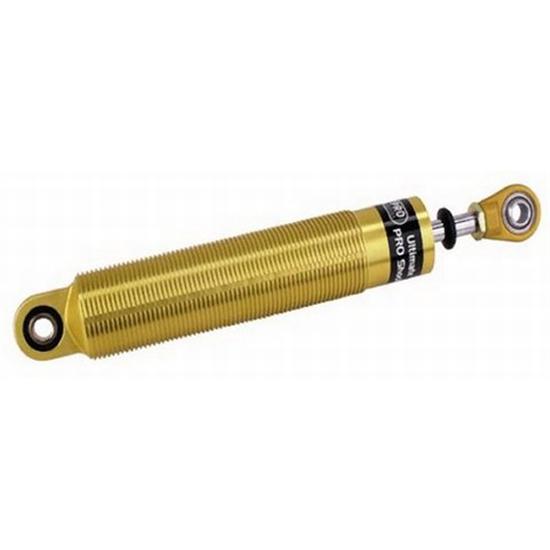

Pro Shocks® AC94.5B Large Alum. Threaded 9 In Shock, 4.5/4.5
$235.99
each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before November 22nd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Twin Tube Shock Type, Anodized
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks AC94.5B Details
Pro Shocks AC94.5B Details
Threaded aluminum body shocks are just the ticket for late models. Sold with bearing ends.
- 9" stroke
- 2.00 diameter shocks
- 14-3/4" comp. length
- 23-1/2" ext. length
Charts
Guides & Documents
Pro Shocks AC94.5B Specifications
Pro Shocks AC94.5B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AC94.5B |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 4.5 |
| Rebound Valving | 4.5 |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.75" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 9.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| External Canister | No |
| Rebuildable | Yes |
| Sold in Quantity | Each |
