Product Summary

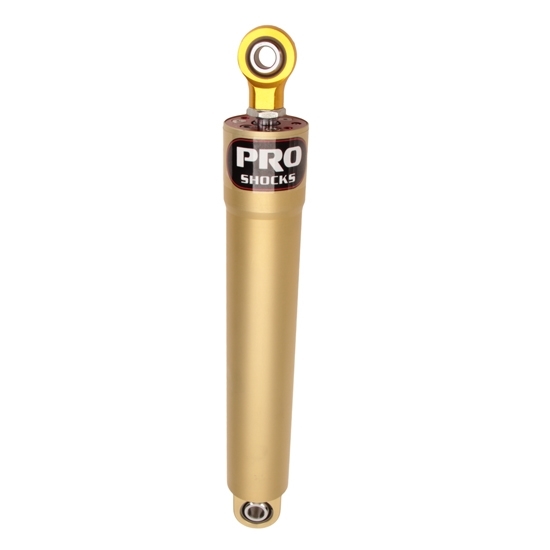

Oval Track Cars, Mono Tube Shock Type, Anodized

    Key Specs

    MFG. Part #A953-8R
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Shock Body TypeSmooth
    Shock Body SizeLarge Body

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    This aluminum big body shock features re-buildable housing that improves the life of the adjuster with yearly maintnance. They come with the new valve bodies with updated rebound ranges and provide a proven, leak-free sealing system. The click adjuster allows the rebound to be the reset the same everytime.

    • Positive detent locating mechanism for fine tuned adjustability
    • 2-piece valve body improves serviceability of seals and reliability of internal components
    • +/- indicator
    • Big Body Smooth A-Series 5/5-14
    • 9 Inch Pro Shocks® Shock
    • Sold Individually
    Positive detent locating mechanism for fine tuned adjustability - See more at: http://www.afcodynapro.com/proshocks/1944291956#sthash.Dv0Xj2A9.dpuf

    Charts

    Specifications

    KEY SPECS
    MFG. Part #A953-8R
    BrandPro Shocks
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    GENERAL
    Shock Stroke Range9.00" to 9.99"
    Compression Valving5
    Rebound Valving5 - 14
    Shock Stroke9.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range24.00" to 24.99"
    Extended Length24"
    Compressed Length Range15.00" to 15.99"
    Compressed Length15"
    Schrader ValveNo
    FinishAnodized
    Body Diameter2"
    RebuildableYes
    Sold in QuantityEach
    Hardware IncludedNo
