Product Summary

221, 260, 289, 302, 5.0L, One Carburetor Quantity

    Key Specs

    MFG. Part #54030
    BrandProfessional Products

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

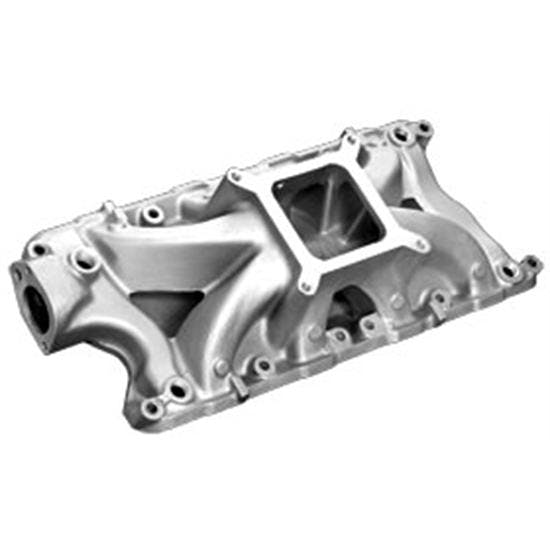

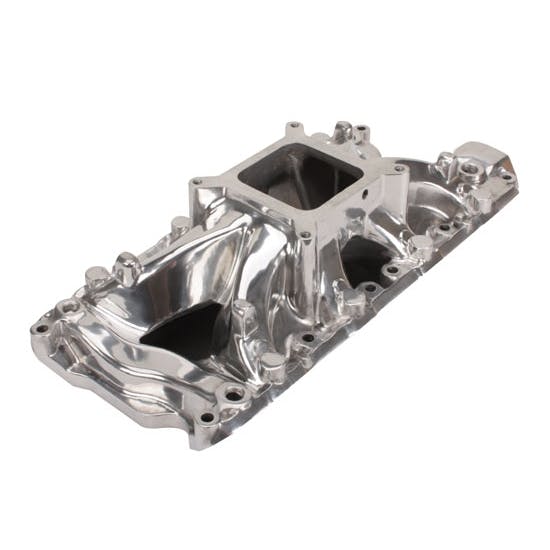

    This manifold is designed for racing or serious street applications using stock cast-iron or aftermarket Windsor style cylinder heads. Includes bosses that can be drilled and tapped for nitrous. It features a rear water crossover passage along with four corner tapped water ports. Ports are 1.90” x 1.08” at the gasket flange and the manifold contains enough material to open ports to 2.10” x 1.25”. Use Professional Products intake gasket #54600 or Fel-Pro intake gasket #1250 or #1262. This manifold includes a 1/8-NPT vacuum port under the carb flange, a feature lacking in competitive manifolds of this type. Note that due to the port layout on small block Ford engines, a single plane manifold, such as this one, will typically be suitable for street use as long as the vehicle is not too heavy.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #54030
    BrandProfessional Products
    GENERAL
    Intake Manifold TypeSingle Plane
    Carburetor QuantityOne
    Carburetor Flange Type4-Barrel Square Bore
    Material TypeAluminum
    FinishPolished
    Overall Height5.39"
    Port Height1.90"
    Port Width1.08"
    Bolt Hole Pattern5.160" x 5.625"
    Sold in QuantityEach
    GTIN Code665053540301
