Chevy Front Axle Steering & Brake Kit, 48 Inch Axle

#9133901

Chevy Front Axle Steering & Brake Kit, 48 Inch Axle

Name: Chevy Front Axle Steering & Brake Kit, 48 Inch Axle
Brand: Speedway Motors
SKU: 9133901
Rating: 4.6 (43 reviews)

43 Reviews

31 Questions

Budget friendly steering and brake kit for 48" kingpin center to center axles with 49-53 Chevy kingpin boss
One piece forged 4140 steel spindles with kingpins already fit, modeled after '49-'54 Chevy car
Features 9-1/4" vented rotors with your choice of wheel bolt pattern, 5 on 4-1/2" (1/2" wheels studs) or 5 on 4-3/4" (7/16" wheel studs)

Caliper Type:

Stock-Style

Wilwood D154

Bolt Pattern:

Select a bolt pattern

Steering:

Select a steering

Finish:

Select a finish

Starting from

$666.99

/kit

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Straight Axle Front Suspension Type

Budget friendly steering and brake kit for 48" kingpin center to center axles with 49-53 Chevy kingpin boss
One piece forged 4140 steel spindles with kingpins already fit, modeled after '49-'54 Chevy car
Features 9-1/4" vented rotors with your choice of wheel bolt pattern, 5 on 4-1/2" (1/2" wheels studs) or 5 on 4-3/4" (7/16" wheel studs)
Standard '78-'88 GM metric style calipers offer a 2-1/2" bore with 7-16"-20 inlet
7/16"-20 to AN3 banjo bolt adapter kit included for calipers

See more details

Key Specs

MFG. Part #	Select Caliper Type, Bolt Pattern, Finish and Steering
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Front Suspension Kits Installation Instructions (9133901)

Brake Pad Identification and Friction Surface Options Explained

Installation Tips

Cross Steering vs. Traditional Steering

Traditional steering provides an original, period look, but will only work in these applications:

Four bar setup with '68-'73 Mustang box
Split wishbone or hairpin radius rod with reversed Corvair or '48-'56 Ford Pickup steering box
Parallel Steering Set-Up Guide

Cross steering (using a Vega box) is the preferred method for nearly all cross spring, beam axle suspensions. Ford used this design from 1935-on.

Less bumpsteer
More comfortable steering column angle
Frees up foot pedal / bellhousing room
Cleaner vehicle profile
Cross Steering Guide

If you are wanting our chrome option, please note that not everything comes in chrome.

These items come in chrome

Chrome Tie Rod/Drag Link Sleeve
Chrome Steel Jam Nuts
Chevy Flat Plate Steering Arms, Chrome
Rod End Bolt Kit
Steering Arm Bolt Kit

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

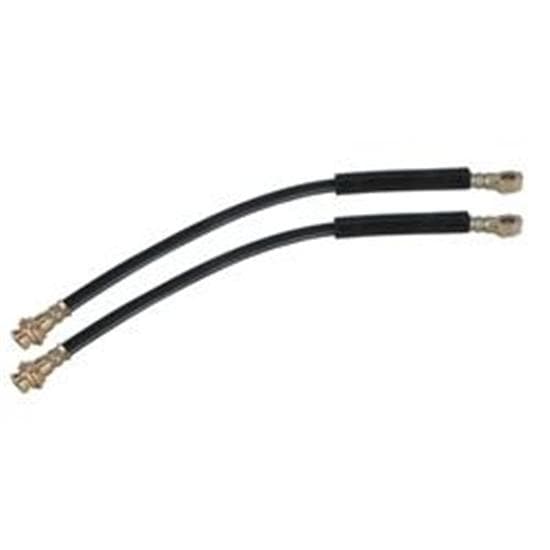

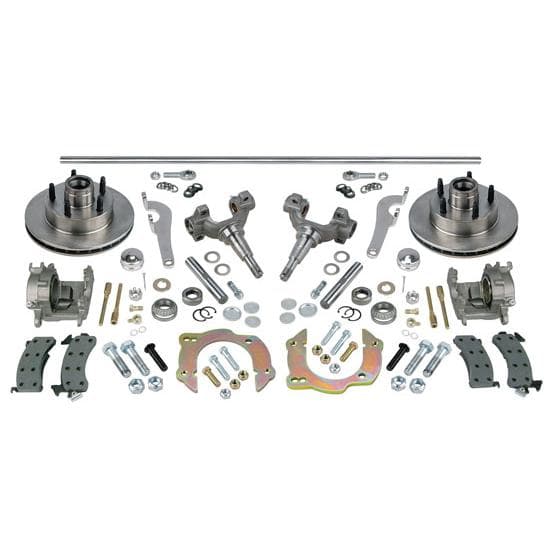

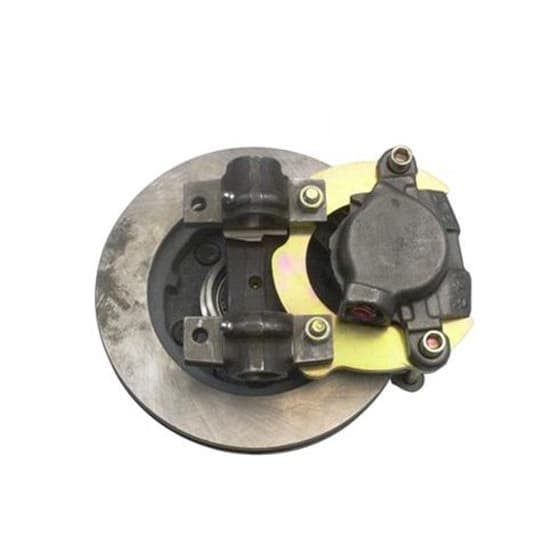

Speedway's exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, AN3 caliper fittings, Rubber Brake Lines, kingpins, flat steering arms, tie rod assembly and hardware.

For 48" kingpin-to-kingpin axles. Traditional steering arm for left front wheel NOT included with Traditional steering kit.

Speedway 1949-1954 Chevy Spindles
- One piece forged 4140 steel
- Modeled after the 49-54 Chevy passenger car spindles
- Steering arms may be mounted to the top or bottom of the spindle
- Standard king pins fit to spindles
Speedway 9-1/4" Brake Kit
- 9-1/4" Mustang II rotors
- 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- Hub flange (hat) diameter - 5.74"
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16" banjo bolt to -3 AN line adapter kit
Traditional or Cross Steering Kit
- Flat plate steering arms
- 5/8" tie rod steering link
- 5/8" standard heim joint rod ends
- Seals-It 5/8" rod end seals
- 5/8" steel cone heim spacers

Application

Chevy 1949-54 spindles are specifically designed for use on tube axles. A shorter, thicker axle stub makes this a slightly stronger spindle ideal for use with heavier street rods.
Ford 1928-48 spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle.

Charts

5 x 4-1/2 & 4-3/4 Brake Kit Instructions (PDF)

Spindle Identification Guide (GIF)

Guides & Documents

Front Suspension Kits Installation Instructions (9133901)

Front Suspension Kits Technical Information (9133901)

Front Suspension Kits Installation Instructions (9133901)

Spindles Technical Information (91032100)

Disc Brake Pads Technical Information (9193381)

Brake Pad Identification and Friction Surface Options Explained

Swedged Tubes Technical Information (91631)

Heim Joints and Rod Ends Technical Information (1750306)

Steering Arms Technical Information (91632026)

Steering Arms Technical Information (91632024)

Steering Arms Technical Information (91632031)

Steering Arms Technical Information (91632030)

Specifications

KEY SPECS
MFG. Part #	Select Caliper Type, Bolt Pattern, Finish and Steering to see
Brand	Speedway Motors
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included
Spring Type	Not Included
Finish	Select Caliper Type, Bolt Pattern, Finish and Steering to see
Bolt Pattern	Select Caliper Type, Bolt Pattern, Finish and Steering to see
Rotor Diameter	9.25 Inch
Spindle Style	Chevy/GM Custom
Dropped Spindles	No
Dropped Axle	No
Dropped Control Arms	No
Spindles Included	Yes
Brakes Included	Yes
Steering Included	Yes
Caliper Pistons	Single
Caliper Finish	Natural
