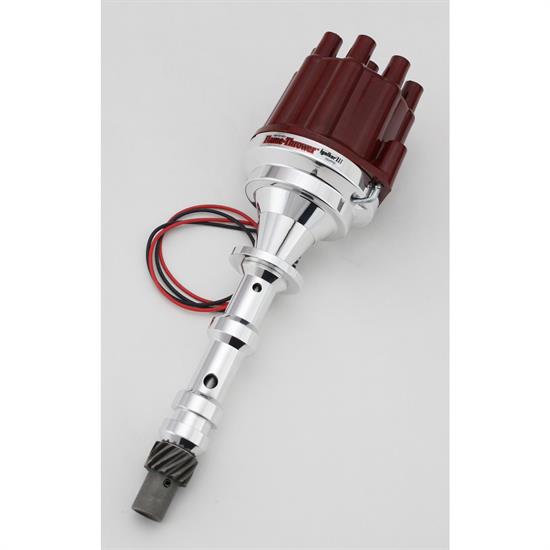

PerTronix D7101801 Flame-Thrower Ignitor III Distributor, Chevy 409
• Multiple sparks throughout the entire RPM range
• Integrated digital rev limiter with LED feedback for precise RPM
• Memory safe function store settings eliminating unintended changes to rev limit
• Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
• Synchronized peak current and park timing reduces heat build up
• Peak current level is reached just prior to spark for maximum energy without heat build up, increasing coil performance and module reliability
• Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
• Senses startup and increases energy for easier quicker starting
• Thermal clad surface mount construction for superior reliability
• Built-in reverse polarity and over current protection shuts down the system, preventing component damage
• Not compatible with C D or Multi-Spark boxes.
• Precision CNC machined billet housings are polished to a high luster
• Tempered distributor shafts have low torsion displacement for accurate timing and longer life
• Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
• High strength cap with male or female brass terminals and premium rotor with brass contatcs
• Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
• Warranty: 30 months electronics / Limited 1 year mechanicalFlame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size. Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.
- PerTronix D7101801 Flame-Thrower Electronic Distributor Billet Chevrolet 409 with Ignitor III Non Vacuum Red Cap
- This product is discontinued.
- This item ships directly from the manufacturer. It may take an additional business days for PerTronix to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
- This item 447D7101801 is made to order. It will be shipped from our warehouse when it is produced.
