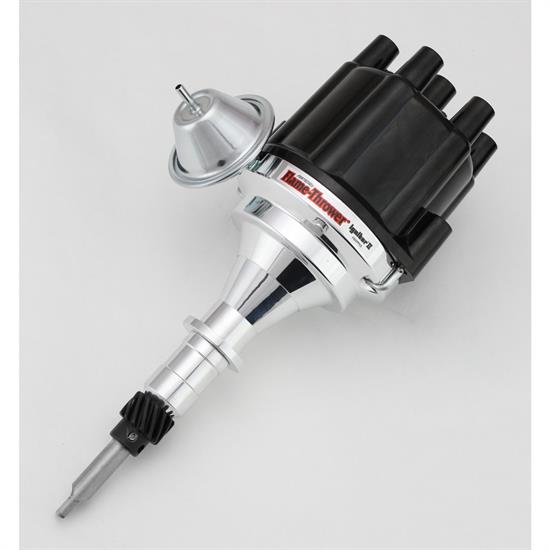

PerTronix D106700 Flame-Thrower Electronic Distributor, SBC/BBC, Black
194 Chevy Inline Six, 230 Chevy Inline Six, 250 Chevy Inline Six, 292 Chevy Inline Six, Black
Flame-Thrower billet Plug 'N Play distributor with vacuum advance for GM L6 engine. Black female style cap.
Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented IgnitorÂ® II electronics and a CNC machined 6061 T-6 polished billet housing.Features
• Integrated patented Ignitor II technology with adaptive dwell control.
• Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
• A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
• Ignitor II compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
• Synchronized peak current and spark timing reduces heat build-up.
• Precision CNC machined billet housings are polished to a high luster.
• Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
• Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
• Precision stamped advance weights eliminate erratic timing.
• Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
• High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
• Compatible with most Capacitive Discharge Systems.
• Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
• Warranty: 30 months electronics / Limited 1 year mechanical. Flame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size.Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.
- PerTronix D106700 Flame-Thrower Electronic Distributor Billet GM L6 Plug and Play with Ignitor II Technology Vacuum Advance Black Cap
- This item ships directly from the manufacturer. It may take an additional 15 business days for PerTronix to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
