Product Summary

Universal Fit, 6.00" Overall Height, 108:1 Turns Ratio

  • Features a super low 0.6 Ohm primary resistance
  • Low resistance and improved turns ratio help to produce up to 45,000 volts
  • Enables you to run larger spark plug gaps for added power and better fuel economy
  • Will work with 4, 6, & 8 cylinder engines
  • Features a socket/female cap and terminal style

Key Specs

D-57-21
MFG. Part #45001
BrandPerTronix
CARB EO#

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

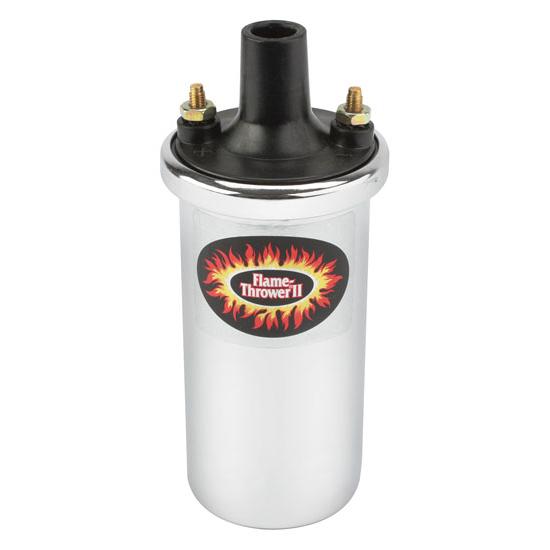

Flame-Thrower II coils feature a super low 0.6 Ohm primary resistance which make them the ideal coil for Ignitor II ignition systems, Flame-Thrower billet distributors, as well as many other high energy ignitions. Low resistance and improved turns ratio help to produce up to 45,000 volts. This higher voltage enables you to run larger spark plug gaps for added power and better fuel economy.

These coils are also compatible with most capacitive discharge boxes.

Application

6 Volt application with 0.6 ohm resistance for 8 Cyl engines

12 Volt application with 0.32 - 0.6 ohm resistance for 4, 6, & 8 cylinder engines

Charts

Specifications

D-57-21
KEY SPECS
MFG. Part #45001
BrandPerTronix
CARB EO#
GENERAL
Overall Height6.00"
Outside Diameter2.125"
Cap TypeSocket / Female
Cap Terminal StyleSocket / Female
Maximum Voltage45,000 volts
Turns Ratio108:1
Resistance.60 ohms
Secondary Resistance10.00 ohms
Inductance7.2
Peak Current7.20
Spark Duration1.50
GTIN Code694342007591
Sold in QuantityEach
