#9308403

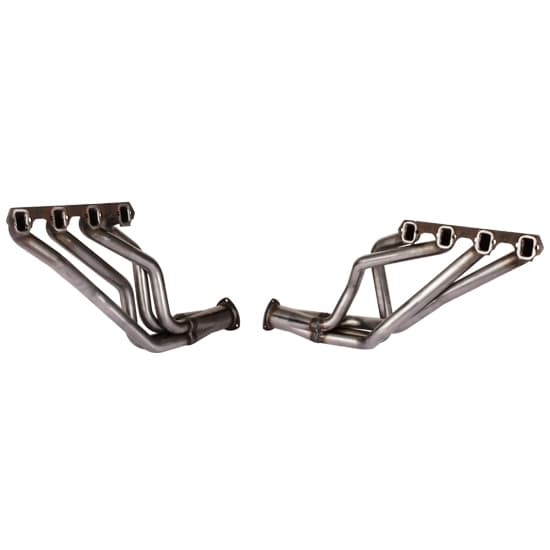

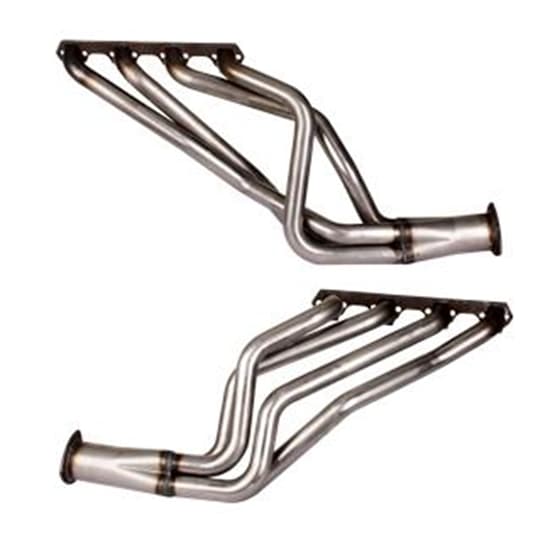

Patriot Exhaust H8403 1964-73 Mustang Long Tube Headers, Plain Steel
$299.95
pair
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
260, 289, 302, 5.0L, Full-length Header Tube Type, Raw
See more details
Key Specs
Header Tube Type | Full-length |
Finish | Raw |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These high velocity long tube headers fit 260-289-302 V8s in 1964-73 Ford Mustangs with floor shift automatic or manual transmissions. Works with C-6 Automatic, but does NOT work with '71-'73 manual transmission. NOT for use with Dart/Windsor heads or Boss heads.
- 1-5/8" primaries
- 3" collectors
- A/C: Yes
- P/B: Yes
- P/S: Yes
- Auto on Column: No
- Auto on Floor: Yes
- Standard on Column: No
- Standard on Floor: Yes
- A/C: Yes
- P/B: Yes
- P/S: Yes
- Auto on Column: No
- Auto on Floor: Yes
- Standard on Column: No
- Standard on Floor: Yes
Application
- '64-'73 Mustang & Cougar
- '66-'73 Fairlane & Torino
- '66-'73 Fairlane & Torino (Automatic)
- '66-'73 Falcon & Ranchero
- '66-'69 Comet
Specs
Guides & Documents
CARB Warning
For use on pre-1966 vehicles only
CARB Warning
For use on pre-1966 vehicles only
Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Specifications
Specifications
KEY SPECS | |
---|---|
Brand | Patriot Exhaust |
Header Tube Type | Full-length |
Finish | Raw |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Material Type | Steel |
Color | Natural |
Weld-Up | No |
Exhaust Port Shape | Rectangle |
Collector Diameter | 3 Inch |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Attachment Type | 3-bolt flange |
Collector Reducers Included | No |
GENERAL | |
Collector Length | 8" |
Flange Thickness | .31" |
Port Height | 1.53" |
Port Width | 1.25" |

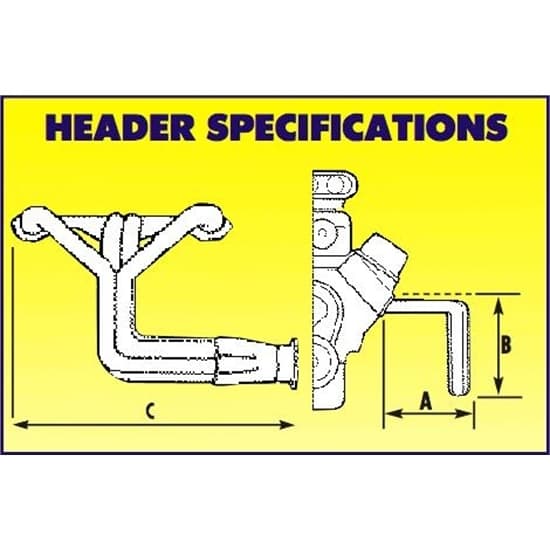

Drivers Side Dimension A | 8.1" |
Drivers Side Dimension B | 16.42" |
Drivers Side Dimension C | 36.75" |
Passenger Side Dimension A | 6.85" |
Passenger Side Dimension B | 16.85" |
Passenger Side Dimension C | 34" |
Sold in Quantity | Pair |
Notes | Fits most: 64-73 Mustang and Cougar, 66-73 Fairlane & Torino, 66-73 Falcon & Ranchero, 66-69 Comet. 66-73 Fairlane automatics. |
