Patriot Exhaust H8403-1 Full Length Header, 64-73 Mustang, CC

Rebate

#447H84031

Patriot Exhaust H8403-1 Full Length Header, 64-73 Mustang, CC

Name: Patriot Exhaust H8403-1 Full Length Header, 64-73 Mustang, CC
Brand: Patriot Exhaust
SKU: 447H84031
Price: 643.46 USD
Availability: InStock

Write a Review

1 Question

Finish:

Ceramic Coated

Painted

$643.46

/set

Factory Shipped

$707.81

Save $64.35

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Long Tube Header Tube Type, Standard Flange Style

Rebates Available

See rebate details

See more details

Key Specs

MFG. Part #	H8403-1
Header Tube Type	Long Tube
Exhaust Port Shape	Rectangle
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Patriot Exhaust H8403-1 Details

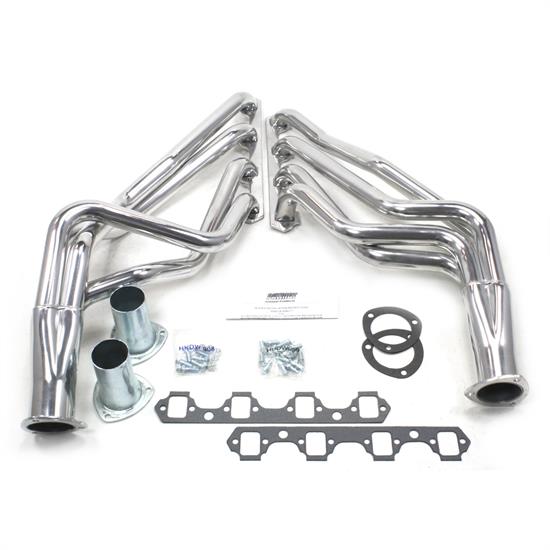

Coated Patriot Header for SBF Mustang (64-73), Falcon (66-70), Fairlane (66-73), Comet (66-69), Ranchero (66-73). Will not fit 351 Windsor

Don't give up looking for headers for your vehicle. Patriot offers headers for many applications at prices you can afford. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing. Patriot headers are available raw or with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resists rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures. All Patriot headers come with installation hardware, collector reducers, gaskets and instructions. Please see our online catalog for specific information like tube size, port shape and collector size.

Full length headers are typically used for higher RPM horsepower, but can also increase the mid range torque in applications were there is room to fit a long tube design.
Durable 18-gauge tubing
Comes complete with gaskets, header bolts and collector reducers.
Available in three finishes; raw steel for individual customizing, Hi-Temp Black Coating or Metallic Ceramic Thermal Barrier Coating
Limited One Year Warranty

Patriot Exhaust H8403-1 1 5/8" Full Length Header Ford Mustang Small Block Ford 64-73 Metallic Ceramic Coating
Collector: 3"
Port: SAP
Primary: 1 5/8"
Requires Pwr. Strg. Brkt PN H7609.
Will Not Fit Dart/Windsor Heads
with A/C
with Floor Shifter

Patriot Exhaust H8403-1 1 5/8" Full Length Header Ford Mustang Small Block Ford 64-73 Metallic Ceramic Coating
Collector: 3"
Port: SAP
Primary: 1 5/8"
Requires Pwr. Strg. Brkt PN H7609.
Will Not Fit Dart/Windsor Heads
with A/C
with Floor Shifter

Application

1966-1967 Ford Fairlane 4.7L/289 V8
1968-1970 Ford Fairlane 5L/302 V8
1966-1968 Ford Falcon 4.7L/289 V8
1968-1970 Ford Falcon 5L/302 V8
1964 Ford Mustang 4.3L/260 V8
1964-1968 Ford Mustang 4.7L/289 V8
1968-1972 Ford Mustang 5L/302 V8
1966-1967 Ford Ranchero 4.7L/289 V8
1968-1973 Ford Ranchero 5L/302 V8
1968-1973 Ford Torino 5L/302 V8
1967-1968 Mercury Cougar 4.7L/289 V8
1968-1971 Mercury Cougar 5L/302 V8
1966-1967 Mercury Cyclone 4.7L/289 V8
1968-1971 Mercury Cyclone 5L/302 V8
1968-1973 Mercury Montego 5L/302 V8

Rebates

Aeromotive & PerTronix Black Friday 10% Off Sale

Black Friday Savings Are Here! From November 1 2026 through November 30 2026, save 10% on all Aeromotive and PerTronix products, including top performance brands like Doug's Headers, Taylor Cable, and JBA Performance Exhaust. Whether you're upgrading your fuel system, ignition components, headers, spark plug wires, or exhaust setup, this limited-time offer makes it easy to get premium performance parts at a great price. No coupon required, just shop qualifying Aeromotive and PerTronix brands and enjoy instant savings all month long.

Guides & Documents

Choosing the Right Headers

Headers Installation Instructions (447H84031)

Warranty (Patriot Exhaust)

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Patriot Exhaust H8403-1 Specifications

KEY SPECS
MFG. Part #	H8403-1
Brand	Patriot Exhaust
Header Tube Type	Long Tube
Exhaust Port Shape	Rectangle
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Silver
Weld-Up	No
Collector Diameter	3 Inch
Finish	Ceramic Coated
Hardware Included	Yes
Gasket(s) Included	Yes

GENERAL
Sold in Quantity	Pair
GTIN Code	694342512255

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Do you know if these will fit a 1964 Ford Falcon?

by Danny

• 4 months ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1962-1963 AC Shelby Cobra

Ford 260

1968-1972 DeTomaso Mangusta

Ford 302

1963 Ford 300

Ford 260

1968-1977 Ford Bronco

Ford 302

1980-1984 Ford Bronco

Ford 302

1962-1964 Ford Club Wagon

Ford 260

1962-1964 Ford Country Sedan

Ford 260

1968-1974 Ford Country Sedan

Ford 302

1962-1964 Ford Country Squire

Ford 260

1968-1974 Ford Country Squire

Ford 302

1964 Ford Custom

Ford 260

1968-1972 Ford Custom

Ford 302

1964 Ford Custom 500

Ford 260

1968-1974 Ford Custom 500

Ford 302

1968-1975 Ford E-100 Econoline

Ford 302

1979-1983 Ford E-100 Econoline

Ford 302

1979-1983 Ford E-100 Econoline Club Wagon

Ford 302

1975 Ford E-150 Econoline

Ford 302

1979-1984 Ford E-150 Econoline

Ford 302

1979-1984 Ford E-150 Econoline Club Wagon

Ford 302

1968-1974 Ford E-200 Econoline

Ford 302

1975 Ford E-250 Econoline

Ford 302

1979-1984 Ford E-250 Econoline

Ford 302

1979-1980 Ford E-250 Econoline Club Wagon

Ford 302

1968-1974 Ford E-300 Econoline

Ford 302

1975 Ford E-350 Econoline

Ford 302

1979-1982 Ford E-350 Econoline

Ford 302

1979-1980 Ford E-350 Econoline Club Wagon

Ford 302

1969-1983 Ford F-100

Ford 302

1975-1984 Ford F-150

Ford 302

1969-1984 Ford F-250

Ford 302

1972-1980 Ford F-350

Ford 302

1962-1964 Ford Fairlane

Ford 260

1968-1970 Ford Fairlane

Ford 302

1978-1979 Ford Fairmont

Ford 302

1962-1964 Ford Falcon

Ford 260

1968-1970 Ford Falcon

Ford 302

1962-1964 Ford Falcon Sedan Delivery

Ford 260

1963 Ford Ford 300

Ford 260

1963-1964 Ford Galaxie

Ford 260

1963-1964 Ford Galaxie 500

Ford 260

1968-1974 Ford Galaxie 500

Ford 302

1972-1974 Ford Gran Torino

Ford 302

1975-1980 Ford Granada

Ford 302

1968-1974 Ford LTD

Ford 302

1977-1984 Ford LTD

Ford 302

1977-1979 Ford LTD II

Ford 302

1971-1977 Ford Maverick

Ford 302

1964 Ford Mustang

Ford 260

1968-1973 Ford Mustang

Ford 302

1979 Ford Mustang

Ford 302

1982-1984 Ford Mustang

Ford 302

1975-1978 Ford Mustang II

Ford 302

1962-1964 Ford Ranch Wagon

Ford 260

1968-1974 Ford Ranch Wagon

Ford 302

1962-1964 Ford Ranchero

Ford 260

1968-1974 Ford Ranchero

Ford 302

1977-1979 Ford Ranchero

Ford 302

1963-1964 Ford Sprint

Ford 260

1977-1981 Ford Thunderbird

Ford 302

1983-1984 Ford Thunderbird

Ford 302

1968-1974 Ford Torino

Ford 302

1980 Lincoln Continental

Ford 302

1982-1984 Lincoln Continental

Ford 302

1980-1983 Lincoln Mark VI

Ford 302

1984 Lincoln Mark VII

Ford 302

1981-1984 Lincoln Town Car

Ford 302

1977-1980 Lincoln Versailles

Ford 302

1964 Mercury Caliente

Ford 260

1979 Mercury Capri

Ford 302

1982-1984 Mercury Capri

Ford 302

1960-1964 Mercury Comet

Ford 260

1968-1969 Mercury Comet

Ford 302

1971-1977 Mercury Comet

Ford 302

1968-1971 Mercury Cougar

Ford 302

1977-1981 Mercury Cougar

Ford 302

1983-1984 Mercury Cougar

Ford 302

1963 Mercury Country Cruiser

Ford 260

1964 Mercury Cyclone

Ford 260

1968-1971 Mercury Cyclone

Ford 302

1979-1984 Mercury Grand Marquis

Ford 302

1979-1982 Mercury Marquis

Ford 302

1962-1963 Mercury Meteor

Ford 260

1975-1980 Mercury Monarch

Ford 302

1968-1974 Mercury Montego

Ford 302

1962-1964 Mercury Villager

Ford 260

1978-1979 Mercury Zephyr

Ford 302

1962-1964 Shelby Cobra

Ford 260

1964-1967 Sunbeam Tiger

Ford 260
