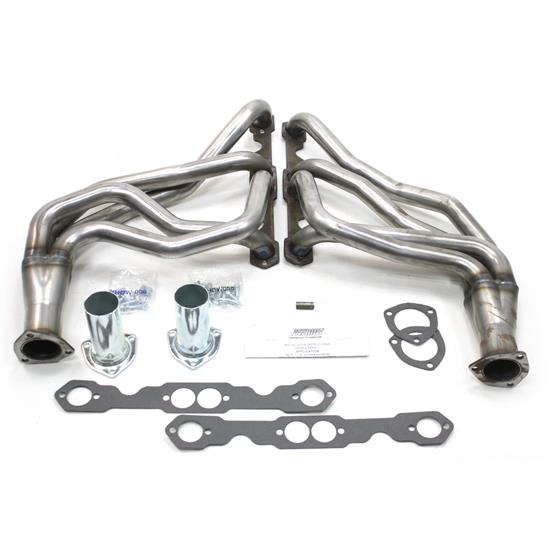

Patriot Exhaust H8049 Header, 67-87 Chevy Truck, Raw, 1-5/8
Patriot Exhaust H8049 Header, 67-87 Chevy Truck, Raw, 1-5/8

Patriot Exhaust H8049 Header, 67-87 Chevy Truck, Raw, 1-5/8

Chevy Small Block V8, Full-length Header Tube Type, Raw, Round Port Flange Style, Steel

0 Reviews | 1 Answered Question
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Patriot Exhaust H8049 Header, 67-87 Chevy Truck, Raw, 1-5/8
Patriot Exhaust H8049 Header, 67-87 Chevy Truck, Raw, 1-5/8
Zoomed In Image
Patriot Exhaust estimates this item will ship on or before November 19th.
Part # 447H8049
Save 34%
$189.99
$289.02
set
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Header Tube Type:
Full-length
Finish:
Raw
Flange Style:
Round Port
Primary Tube Diameter:
1-5/8"
Material Type:
Steel
Color:
Natural
MFG. Part #:
H8049
Collector Diameter:
2-1/2 Inch
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Set
GTIN Code:
694342512149
Collector Reducers Included:
Yes

Info

Patriot Header for 4WD 1/2, 3/4, 1 Ton Pickup (67-87) SB Engine

Don't give up looking for headers for your vehicle. Patriot offers headers for many applications at prices you can afford. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing. Patriot headers are available raw or with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resists rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures. All Patriot headers come with installation hardware, collector reducers, gaskets and instructions. Please see our online catalog for specific information like tube size, port shape and collector size.

  • Patriot offers headers for many applications at prices you can afford.
  • Durable 18-gauge tubing
  • Comes complete with gaskets, header bolts and collector reducers.
  • Available in three finishes; raw steel for individual customizing, Hi-Temp Black coating or Metallic Ceramic Thermal Barrier coating
  • Limited One Year Warranty

Installation Instructions (PDF)

Application

1970-1973 Chevrolet Blazer 4.8L/292
1969-1991 Chevrolet Blazer 5.7L/350 V8
1987 Chevrolet Blazer 5L/305 V8
1969-1973 Chevrolet Blazer 5L/307 V8
1987-1991 Chevrolet Blazer 6.2L/379 V8
1967 GMC C15/C1500 Pickup 4.6L/283 V8
1967-1974 GMC C15/C1500 Pickup 4.8L/292
1967-1968 GMC C15/C1500 Pickup 5.3L/327 V8
1969-1974 GMC C15/C1500 Pickup 5.7L/350 V8
1967-1969 GMC C15/C1500 Pickup 5L/305 V6
1968-1973 GMC C15/C1500 Pickup 5L/307 V8
1968-1969 GMC C15/C1500 Pickup 6.5L/396 V8
1968-1974 GMC C15/C1500 Suburban 4.8L/292
1968 GMC C15/C1500 Suburban 5.3L/327 V8
1969-1973 GMC C15/C1500 Suburban 5.7L/350 V8
1968-1973 GMC C15/C1500 Suburban 5L/307 V8
1968-1969 GMC C15/C1500 Suburban 6.5L/396 V8
1967 GMC C25/C2500 Pickup 4.6L/283 V8
1967-1974 GMC C25/C2500 Pickup 4.8L/292
1967-1968 GMC C25/C2500 Pickup 5.3L/327 V8
1969-1973 GMC C25/C2500 Pickup 5.7L/350 V8
1967-1969 GMC C25/C2500 Pickup 5L/305 V6
1968-1973 GMC C25/C2500 Pickup 5L/307 V8
1968-1969 GMC C25/C2500 Pickup 6.5L/396 V8
1968-1974 GMC C25/C2500 Suburban 4.8L/292
1968 GMC C25/C2500 Suburban 5.3L/327 V8
1969-1974 GMC C25/C2500 Suburban 5.7L/350 V8
1969 GMC C25/C2500 Suburban 5L/305 V6
1968-1973 GMC C25/C2500 Suburban 5L/307 V8
1968-1969 GMC C25/C2500 Suburban 6.5L/396 V8
1967 GMC C35/C3500 Pickup 4.6L/283 V8
1967-1974 GMC C35/C3500 Pickup 4.8L/292
1967-1968 GMC C35/C3500 Pickup 5.3L/327 V8
1969-1973 GMC C35/C3500 Pickup 5.7L/350 V8
1968-1969 GMC C35/C3500 Pickup 5L/305 V6
1968-1973 GMC C35/C3500 Pickup 5L/307 V8
1968-1969 GMC C35/C3500 Pickup 6.5L/396 V8
1967 GMC G15/G1500 Van 4.6L/283 V8
1967 GMC G15/G1500 Van 5.4L/327 V8
1971-1974 GMC G15/G1500 Van 5.7L/350 V8
1968-1973 GMC G15/G1500 Van 5L/307 V8
1967 GMC G25/G2500 Van 4.6L/283 V8
1974 GMC G25/G2500 Van 4.8L/292
1967 GMC G25/G2500 Van 5.4L/327 V8
1970-1974 GMC G25/G2500 Van 5.7L/350 V8
1968-1973 GMC G25/G2500 Van 5L/307 V8
1974 GMC G35/G3500 Van 4.8L/292
1971-1973 GMC G35/G3500 Van 5.7L/350 V8
1973 GMC Jimmy 4.8L/292
1970-1991 GMC Jimmy 5.7L/350 V8
1977-1987 GMC Jimmy 5L/305 V8
1970-1972 GMC Jimmy 5L/307 V8
1982-1991 GMC Jimmy 6.2L/379 V8
1975-1978 GMC Jimmy 6.6L/400 V8
1967 GMC K15/K1500 Pickup 4.6L/283 V8
1967-1971 GMC K15/K1500 Pickup 4.8L/292
1967-1968 GMC K15/K1500 Pickup 5.3L/327 V8
1969-1973 GMC K15/K1500 Pickup 5.7L/350 V8
1967-1969 GMC K15/K1500 Pickup 5L/305 V6
1968-1971 GMC K15/K1500 Pickup 5L/307 V8
1968-1969 GMC K15/K1500 Pickup 6.5L/396 V8
1968-1971 GMC K15/K1500 Suburban 4.8L/292
1968 GMC K15/K1500 Suburban 5.3L/327 V8
1969-1973 GMC K15/K1500 Suburban 5.7L/350 V8
1969 GMC K15/K1500 Suburban 5L/305 V6
1968-1973 GMC K15/K1500 Suburban 5L/307 V8
1968 GMC K15/K1500 Suburban 6.5L/396 V8
1979-1980 GMC K1500 4.8L/292
1979-1986 GMC K1500 5.7L/350 V8
1979-1986 GMC K1500 5L/305 V8
1982-1986 GMC K1500 6.2L/379 V8
1979-1980 GMC K1500 6.6L/400 V8
1967 GMC K25/K2500 Pickup 4.6L/283 V8
1967-1974 GMC K25/K2500 Pickup 4.8L/292
1967-1968 GMC K25/K2500 Pickup 5.3L/327 V8
1969-1973 GMC K25/K2500 Pickup 5.7L/350 V8
1967-1969 GMC K25/K2500 Pickup 5L/305 V6
1968-1972 GMC K25/K2500 Pickup 5L/307 V8
1968-1969 GMC K25/K2500 Pickup 6.5L/396 V8
1968-1974 GMC K25/K2500 Suburban 4.8L/292
1968 GMC K25/K2500 Suburban 5.3L/327 V8
1969-1973 GMC K25/K2500 Suburban 5.7L/350 V8
1969 GMC K25/K2500 Suburban 5L/305 V6
1968-1973 GMC K25/K2500 Suburban 5L/307 V8
1968 GMC K25/K2500 Suburban 6.5L/396 V8
1979-1986 GMC K2500 4.8L/292
1979-1986 GMC K2500 5.7L/350 V8
1982-1986 GMC K2500 6.2L/379 V8
1979-1980 GMC K2500 6.6L/400 V8
1968-1974 GMC K35/K3500 Pickup 4.8L/292
1968 GMC K35/K3500 Pickup 5.3L/327 V8
1969-1973 GMC K35/K3500 Pickup 5.7L/350 V8
1968-1969 GMC K35/K3500 Pickup 5L/305 V6
1968-1973 GMC K35/K3500 Pickup 5L/307 V8
1968-1969 GMC K35/K3500 Pickup 6.5L/396 V8
1979-1986 GMC K3500 4.8L/292
1979-1986 GMC K3500 5.7L/350 V8
1982-1986 GMC K3500 6.2L/379 V8
1979-1980 GMC K3500 6.6L/400 V8
1967 GMC P15/P1500 Van 4.6L/283 V8
1967 GMC P15/P1500 Van 4.8L/292
1970-1973 GMC P15/P1500 Van 5L/307 V8
1971-1972 GMC P15/P1500 Van 6.6L/400 V8
1967 GMC P25/P2500 Van 4.6L/283 V8
1967-1974 GMC P25/P2500 Van 4.8L/292
1970-1974 GMC P25/P2500 Van 5.7L/350 V8
1968-1973 GMC P25/P2500 Van 5L/307 V8
1971-1972 GMC P25/P2500 Van 6.6L/400 V8
1967 GMC P35/P3500 Van 4.6L/283 V8
1967-1974 GMC P35/P3500 Van 4.8L/292
1970-1974 GMC P35/P3500 Van 5.7L/350 V8
1968-1973 GMC P35/P3500 Van 5L/307 V8
1971-1972 GMC P35/P3500 Van 6.6L/400 V8
1987 GMC V1500 5.7L/350 V8
1987 GMC V1500 5L/305 V8
1987 GMC V1500 6.2L/379 V8
1987 GMC V2500 4.8L/292
1987 GMC V2500 5.7L/350 V8
1987 GMC V2500 6.2L/379 V8
1987 GMC V3500 4.8L/292
1987 GMC V3500 5.7L/350 V8
1987 GMC V3500 6.2L/379 V8

Notes

  • Patriot Exhaust H8049 1 3/4" Header Chevrolet Truck Small Block Chevrolet 67-87 Raw Steel
  • Collector: 2 1/2"
  • Port: RD
  • Primary: 1 5/8"
  • Does not fit angle plug heads
  • Req. left side AC Brkt H7608
  • Reducers available with O2 sensor fitting
  • Use left side AC Brkt H7608
  • short compressors use stock Brkt
  • with A/C
Some parts are not legal for use in California or other states with similar laws/regulations
