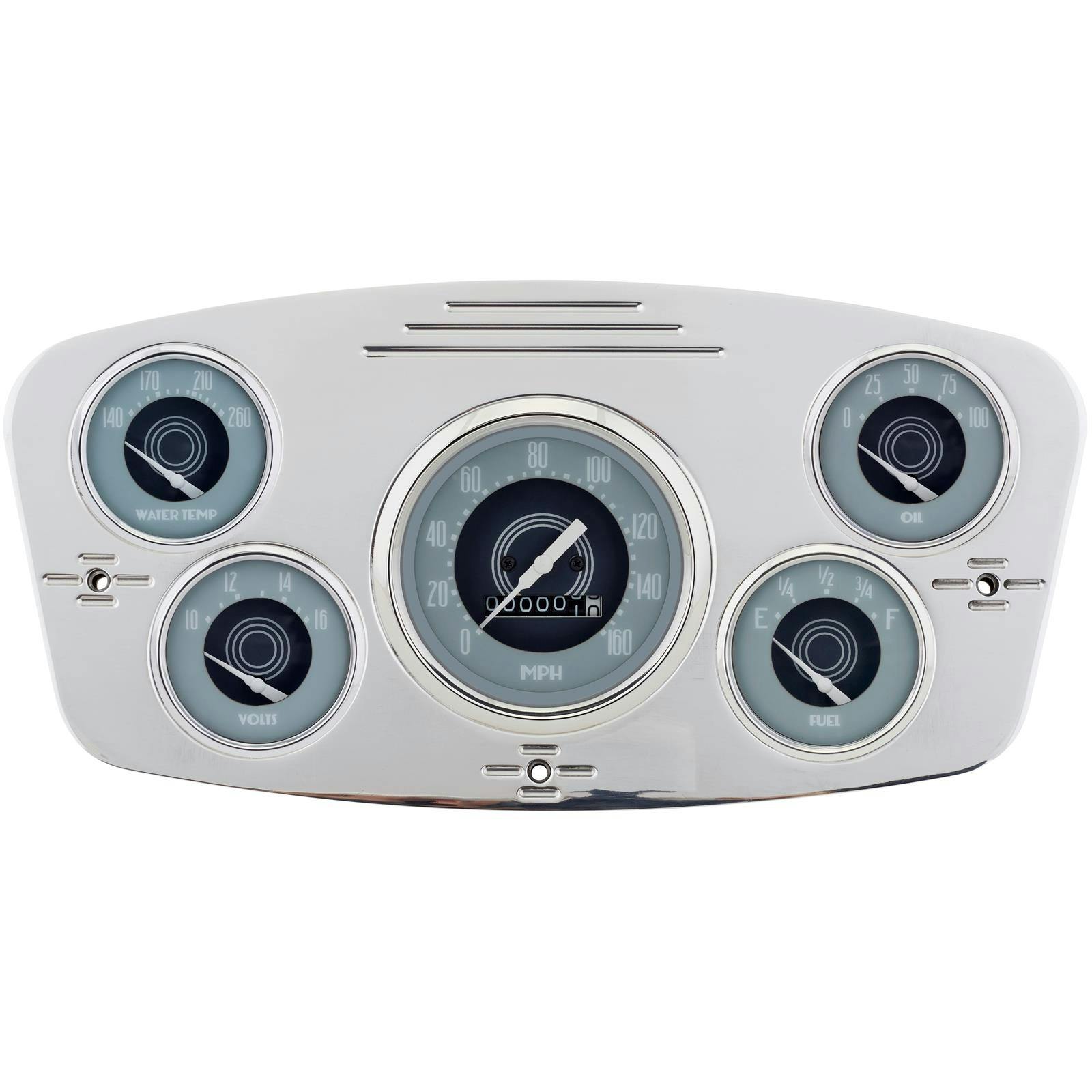

Omega Kustom Avant 5-Gauge Set, Mechanical Speedometer, 3-3/8
Universal Fit, Analog Gauge Series, Electric/Mechanical Gauge Style, 5 Number of Gauge Housings
Avant gauges from Omega are a call back to the elegant designs of the art deco 1930s. For those wanting to invoke the Streamline Moderne spirit of cars such as the 1936 Chevrolet Master Deluxe, the 1937 Oldsmobile Club Coupe, the 1933 Pierce-Arrow Silver Arrow, or maybe even the 1936 Cord 810, these gauges are just the ticket. With dual-layered faces, era-correct lettering, perimeter lighting, and backlit, illuminated numbers, the gauges will add a sense of period-correct class to any build. Despite their pre-war appearances, they feature the latest technology for perfect accuracy.
If you've been wanting to add a touch of this style to your nostalgic hot rod's dashboard (and why wouldn't you?), you're probably already familiar with some of the challenges this task presents. Sourcing the desired gauges is difficult, they're most likely in poor condition, they will need to be serviced, they will require custom adapters/cables, custom holes in the dash will need to be cut, and they may not provide all of the readings that you would like. If that sounds tedious, expensive, and only partially beneficial, that's what we thought too. The Avant gauges have been painstakingly designed to be an affordable, incredibly accurate, easy to use, and durable alternative. The gauges are all common aftermarket sizes, allowing for simple installation using readily available aftermarket gauge panels. To make things even more stress-free we have included temperature, oil pressure, and fuel level senders as well.

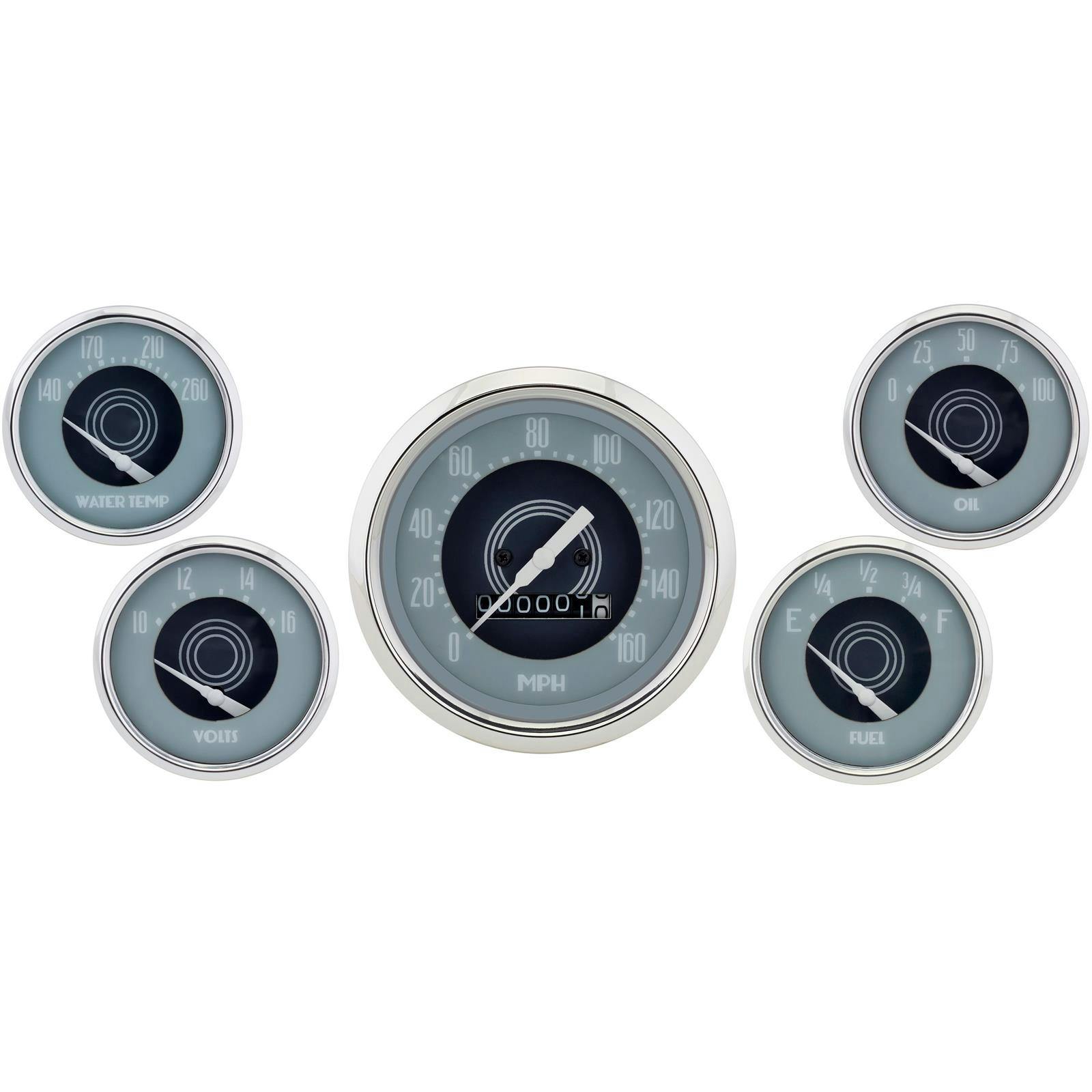

- 3-3/8" Mechanical Speedometer
- 2-1/16" Fuel Level Gauge
- Includes 240-33 ohm fuel level sender
- 2-1/16" Water Temperature Gauge
- Includes temperature sender and adapter bushings
- 2-1/16" Volt Gauge
- 2-1/16" Oil Pressure Gauge
- Includes pressure sender
- Instruction booklet
The 1930s were a wondrous time for automotive design, due almost entirely to a trend that was set off at the 1933-34 "Century of Progress" Chicago Worlds Fair. The iconic style of mid-30's cars like the Buick 6, Oldsmobile Club Coupe, and the Lincoln-Zephyr V12 is known as Streamline Moderne, or "Art Deco in Motion". The concept of machines was changing from rhythmic gear turning to smooth motion, design was becoming less about pure functionality and more about simplicity, economy, and aesthetics. Designers were quickly leaning towards clean, graceful design and starting to get rid of useless protruberances and ugly corners. For the first time ever, these designs were not only available to the upper class, but they were also available in mass-produced and affordable everyday products for the home, the office, or the road. This new approach to design was uniquely American and helped give the public optimism by associating with progress and a better life during difficult times. All of a sudden, an average consumer was being offered smart detailing that was both functional and appealing in design. From the simple and clear instrumentation of a Chevrolet to the bold design of an Oldsmobile, a person's car was now the ultimate personal accessory - desirable for all aspects, including speed, luxury, practicality, and design. Your car was the ultimate expression of your taste and the manufacturer's engineering prowess. All too quickly, however, automobile production was halted for World War II. When production resumed design was taken down a different path, leaving us with a short period of stylish, optimistic cars to drool over.
This history of economic and aesthetic functionality inspired every bit of the Avant family of gauges. Like most styles of the past, the term Avant comes from the French. It means to arrive before; a precursor of designs to come, pushing trends and culture into the future. All gauges are perimeter lit, flooding the gauge with light that reflects off of the case sides to flow all around the dial. In addition, backlit numbers allow for hi-definition viewing at night. All bezels are made from hand-polished stainless steel, not chrome, for a durable finish that meets marine salt corrosion specifications. All lenses are made from glass for ultimate clarity. The Avant line is a uniquely durable and accurate product, while the design is a perfect match for your ride's art deco theme.
Durability and Functionality Specifications
- Accurate to within 2% of full scale
- -4°F to 185°F
- 11.5-16 VDC
- 28 VDC for 5 minutes
- 18 VDC for 60 minutes
- Can withstand reversed polarity indefinitely without damage or loss of accuracy
- 50 G +/- 2G and a half-sine duration of 11+/-2 min per MIL-STD-202, Method 213
- 4 G peak, 10 to 2000 Hz SAE 1455 Appendix A
- B117-73 Front ios corrosion-resistant per ASTM b117-73
- Sealed from water leakage from front at 30 PSI
Two year manufacturer’s warranty for the product to be free of defects. Product must be submitted by end user with proof of purchase to Speedway Motors. Subject to inspection of proper use and install, defective product will be repaired or replaced. No warranty on labor or any consequential damages caused by a failure of warrantied product.
