Offenhauser 1081 3-Hole Fuel Block
$111.99
each
In Stock
$146.99
Save $35.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 4.70" Overall Length, .60 lbs. Weight
See more details
Key Specs
MFG. Part # | 1081 |
Brand | Offenhauser |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyOffenhauser 1081 Details
Offenhauser 1081 Details

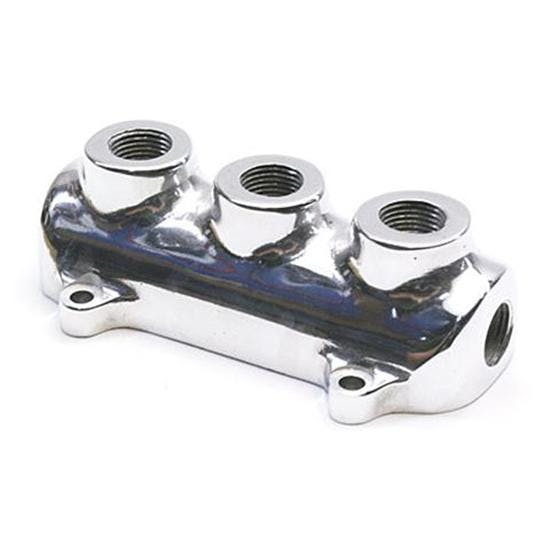

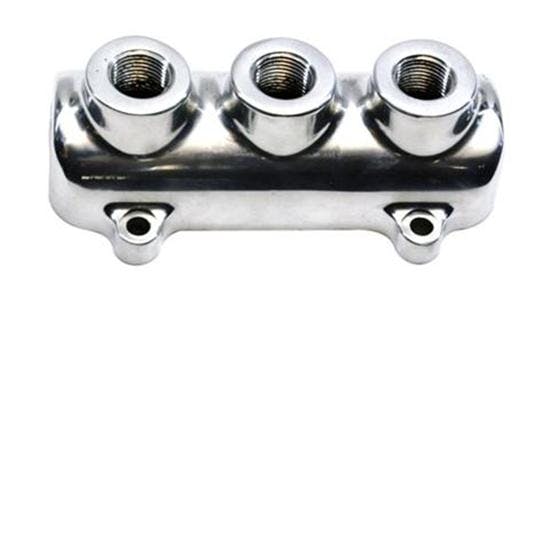

This Offy fuel distribution block has 3 large 3/8" NPT outlets, which equalizes fuel flow to any multiple carburetor application using an Offenhauser intake manifold. Fuel log also has a 3/8" NPT tapped hole on each end. Fuel block features a polished aluminum finish with four mounting screw holes to easily mount the unit to your firewall.
- Three 3/8" NPT ports facing forward
- One 3/8" NPT port on each end
Don't forget to order the suggested hose barb fittings to complete your set-up!
Specs
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Offenhauser 1081 Specifications
Offenhauser 1081 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 1081 |
Brand | Offenhauser |
GENERAL | |
Overall Length | 4.70" |
Overall Width | 2.62" |
Overall Height | 1.44" |
Weight | .60 lbs. |
Inlet Fitting | 3/8" NPT |
Outlet Fitting | 3/8" NPT |
Material Type | Aluminum |
Finish | Polished |
Sold in Quantity | Each |
Inlet Quantity | Two |
Inlet Attachment | Female Threads |
Inlet Size | 3/8" NPT |
Outlet Attachment | Female Threads |
Outlet Quantity | Three |
Outlet Size | 3/8" NPT |
Block Shape | T-Style |
