Product Summary

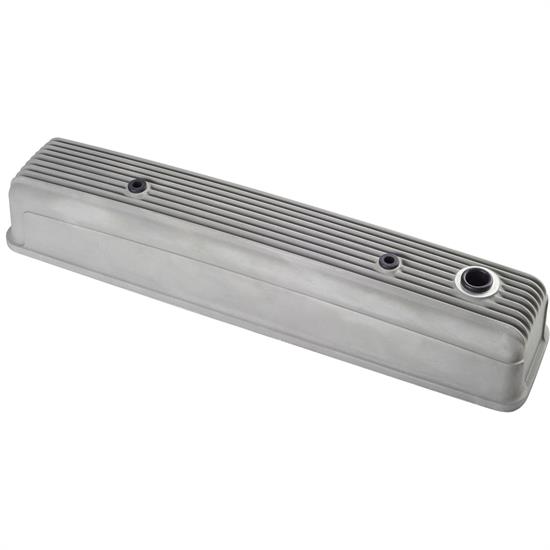

216, 235, Center Bolt Valve Cover Mounting Style, Bare

    Key Specs

    MFG. Part #6411
    BrandOTB Gear
    Valve Cover Mounting StyleCenter Bolt

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    This is a high quality cast aluminum product that goes miles beyond what the market is used to. Cast in premium A-356 alloy, using modern CNC precision tooling to assure a quality product. The casting is heat treated to correct any warpage that can occur on a lengthy component during the cooling process. The gasket surface is then CNC machined to assure an absolutely flat surface. Some products do not go to this extent, which can result in oil leaks. If you have a straight head, we have your valve cover.

    We have gone even further to eliminate oil leaks. We did away with the notch in the front flange area of other valve covers. This notch, to accommodate the tight fit of the water outlet, greatly reduced the sealing surface of the gasket, which could result in an oil leak. Each of our valve covers INCLUDES, at no extra charge, a 1/2” thick aluminum spacer, 2 new gaskets and hardware (#6413). As an additional benefit, you now have more finger room to help keep your engine clean.

    You may notice some additional details on our valve cover… This product as well as all of our finned products feature a fin design that allows for easy cleaning. The fin tops as well as the valleys between have the same radius. When polished, all visible areas of the valve cover are polished and easy to keep that way. Also notice that the raised areas for the breather and hardware are ramped to make cleaning that much easier.

    We provide each valve cover with 2 rubber grommets for the mounting bolts. Also included on the valve cover is a rubber grommet for the use of a breather with a 1” shaft. No need to try to find this stuff somewhere... If you use a 90 degree side mounted breather (such as our #6810 or #6811) this access hole would allow the use of an oil cap. We also offer some great oil caps.

    To mount this 216 style valve cover on a 235 or 261, we are offering a stud kit (#6412) to change the mounting hardware location. Unlike some competitors valve covers, ours, being slightly wider, covers the the 4 perimeter mounting holes on the 235 head. The stud kit comes with polished stainless acorn nuts for a nice finishing touch.

    • Shot blast finish
    • Dimensions: 9-1/2" long by 3-1/2" high



    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #6411
    BrandOTB Gear
    Valve Cover Mounting StyleCenter Bolt
    GENERAL
    Valve Cover Top StyleFinned
    Material TypeAluminum
    FinishBare
    Breathers IncludedNo
    Gaskets IncludedYes
    Grommets IncludedYes
    Hardware IncludedYes
    Overall Length27.325"
    Overall Height4.325"
    Overall Width6"
    Sold in QuantityEach
