New Vintage USA 94421-01M 6 Gauge Aviator KM/H 94-97 Chev
95-97 Chevy Blazer, 94-97 Chevy S10, 94-97 GMC Jimmy, 94-97 GMC Sonoma, Analog Gauge Series
Details
Info

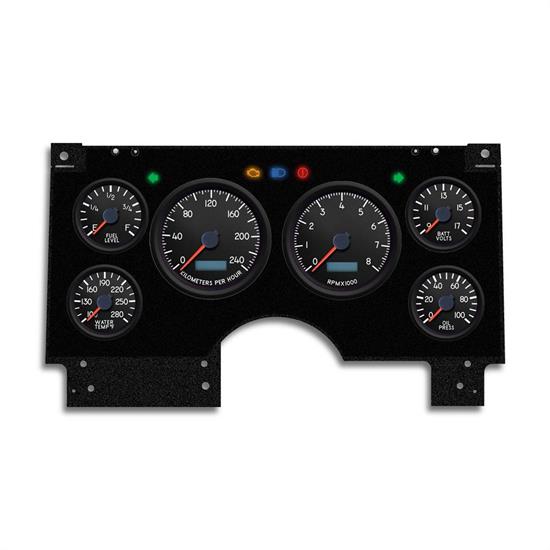

Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play).
Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application.
Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.
AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether its race, off road or daily driver. LED back lit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles. Great choice for a hot rod with a modern twist Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night
Kit includes:
Speedometer, 3-3/8" Programmable electronic 140 MPH
Tachometer 3-3/8"
Fuel gauge 2-1/16", 0-90 ohm factory match
Water temperature gauge 2-1/16:
Oil pressure gauge 2-1/16"
Voltmeter 2-1/16"
Oil pressure and water temperature senders
Bushing kit
Mounting bracket
Instruction booklet
Mounting hardware for gauges
* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.
Notes
For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping & delivery information, please contact the Speedway Motors Customer Experience Center.
Charts
Installation Instructions (PDF)Important Messages
- This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
