95-97 Blazer, 94-97 S10, 94-97 Jimmy, 94-97 Sonoma, Red

    Key Specs

    MFG. Part #94421-01
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

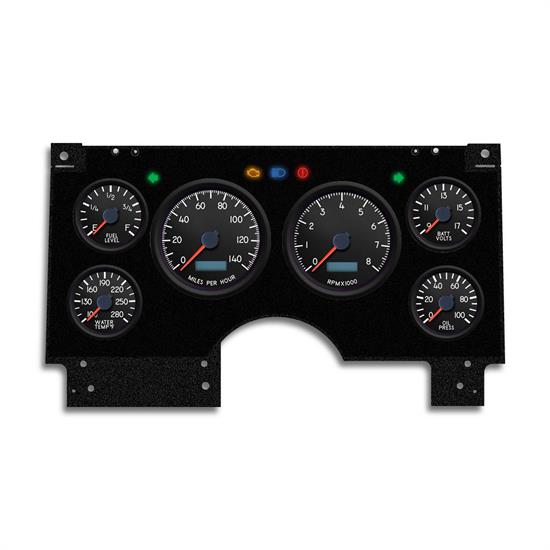

    NVU gauge kits for 94-97 S-10/15 Pickup and 95-97 S10/15 Blazer offer the easiest way to upgrade the dash with all the functions you need. Each kit starts with NVU's exclusive ABS Laser-cut mounting system with laminate printed overlay including hidden indicators for turn signals, hi beam, check engine and warning light. Uses the existing stock dash spacer for a clean, factory-installed look.

    Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play).

    Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application.

    Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

    AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether its race, off road or daily driver. LED back lit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles. Great choice for a hot rod with a modern twist Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night

    Kit includes:

    Speedometer, 3-3/8" Programmable electronic 140 MPH

    Tachometer 3-3/8"

    Fuel gauge 2-1/16", 0-90 ohm factory match

    Water temperature gauge 2-1/16:

    Oil pressure gauge 2-1/16"

    Voltmeter 2-1/16"

    Oil pressure and water temperature senders

    Bushing kit

    Mounting bracket

    Instruction booklet

    Mounting hardware for gauges

    * Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #94421-01
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster
    GENERAL
    Gauge Face ColorBlack
    Bezel FinishBlack
    Needle ColorRed
    Lettering ColorWhite
    Includes Mounting Bracket(s)Yes
    Fuel Sender IncludedNo
    Speed Sender IncludedNo
    Oil Pressure Sender IncludedYes
    Turn Signals IncludedYes
    Includes Wire HarnessNo
    Bezel IncludedYes
    Gauge TypeAnalog
    Lens StyleFlat
    Temperature Sensor Bung IncludedYes
    GTIN Code689860959507
