New Vintage USA 94411-03M 6 Gauge 1940 Series KP/H 94-97 Chev
New Vintage USA 94411-03M 6 Gauge 1940 Series KP/H 94-97 Chev

New Vintage USA 94411-03M 6 Gauge 1940 Series KP/H 94-97 Chev

95-97 Chevy Blazer, 94-97 Chevy S10, 94-97 GMC Jimmy, 94-97 GMC Sonoma, Analog Gauge Series

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
New Vintage USA 94411-03M 6 Gauge 1940 Series KP/H 94-97 Chev
New Vintage USA 94411-03M 6 Gauge 1940 Series KP/H 94-97 Chev
Zoomed In Image
We estimate this item will ship on or before October 22nd.
Part # 2769441103M
Save 9%
$649.99
$719.99
set
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Gauge Face Color:
Black
Needle Color:
Black
Lettering Color:
White
Bezel Finish:
Stainless
MFG. Part #:
94411-03M
Includes Mounting Bracket(s):
Yes
GTIN Code:
689860959637
Fuel Sender Included:
No
Speed Sender Included:
No
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
No
Bezel Included:
Yes
Gauge Type:
Analog
Lens Style:
Domed
Temperature Sensor Bung Included:
Yes

Info

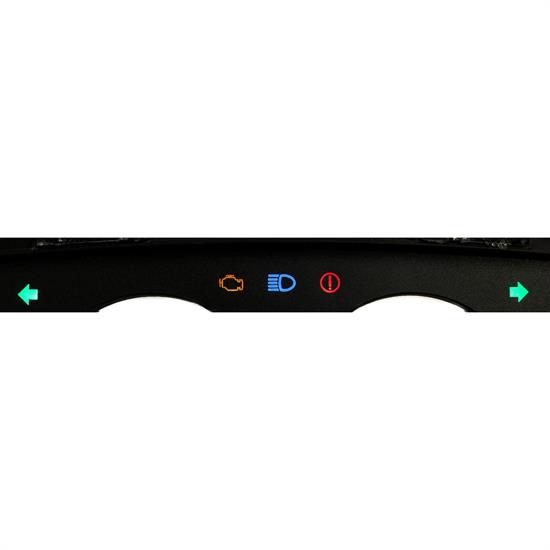

NVU gauge kits for 94-97 S-10/15 Pickup and 95-97 S10/15 Blazer offer the easiest way to upgrade the dash with all the functions you need. Each kit starts with NVU's exclusive ABS Laser-cut mounting system with laminate printed overlay including hidden indicators for turn signals, hi beam, check engine and warning light. Uses the existing stock dash spacer for a clean, factory-installed look.

Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play). Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application. Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

Performance Series gauges feature air core meters and incandescent perimeter lighting (works with factory dimmer).

Inspired by military sets, the 1940 Series has duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect.

Kit includes:

Speedometer, 3-3/8" Programmable electronic 240 KPH

Tachometer 3-3/8"

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.
