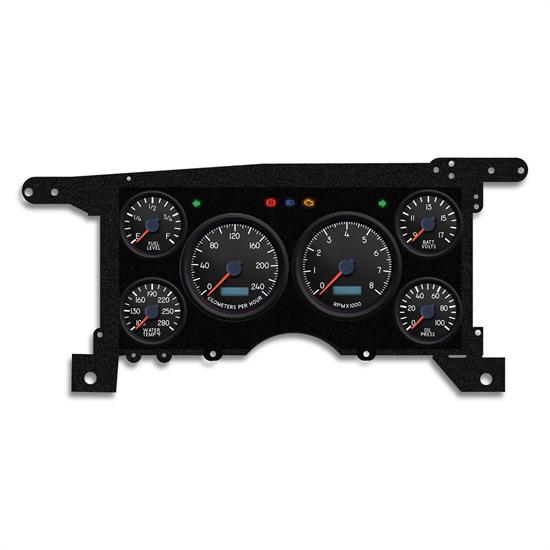

New Vintage USA 90421-01M 6 Gauge Aviator KM/H 86-93 Chev
New Vintage USA 90421-01M 6 Gauge Aviator KM/H 86-93 Chev

New Vintage USA 90421-01M 6 Gauge Aviator KM/H 86-93 Chev

86-93 Chevy S10 Blazer, 86-93 Chevy S10, 86-91 GMC S15 Jimmy, 86-90 GMC S15, 91-93 GMC Sonoma

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
New Vintage USA 90421-01M 6 Gauge Aviator KM/H 86-93 Chev
New Vintage USA 90421-01M 6 Gauge Aviator KM/H 86-93 Chev
Zoomed In Image
We estimate this item will ship on or before December 19th.
Part # 2769042101M
Save 9%
$729.99
$802.99
set
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Gauge Face Color:
Black
Needle Color:
Red
Lettering Color:
White
Bezel Finish:
Black
MFG. Part #:
90421-01M
Includes Mounting Bracket(s):
Yes
GTIN Code:
689860959194
Fuel Sender Included:
No
Speed Sender Included:
No
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
No
Bezel Included:
Yes
Gauge Type:
Analog
Lens Style:
Flat
Temperature Sensor Bung Included:
Yes

Info

NVU gauge kits for 94-04 S-10/15 Pickup and 95-05 S10/15 Blazer offer the easiest way to upgrade the dash with all the functions you need. Each kit starts with NVU's exclusive ABS Laser-cut mounting system with laminate printed overlay including hidden indicators for turn signals, hi beam, check engine and warning light. Uses the existing stock dash spacer for a clean, factory-installed look.

Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play).

Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application.

Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether its race, off road or daily driver. LED back lit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles. Great choice for a hot rod with a modern twist Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night

Kit includes:

Speedometer, 3-3/8" Programmable electronic 240 kph

Tachometer 3-3/8"

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

Installation Instructions (PDF)

Installation Instructions (PDF)
