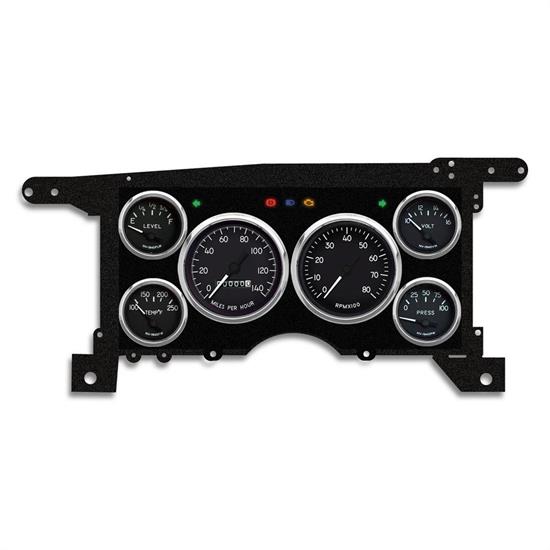

New Vintage USA 90401-01 6 Gauge Performance Black 86-93 Chev
86-93 Chevy S10 Blazer, 86-93 Chevy S10, 86-91 GMC S15 Jimmy, 86-90 GMC S15, 91-93 GMC Sonoma
Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play). Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application. Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.
1940 Series gauges feature air core meters and incandescent perimeter lighting (works with factory dimmer).
Inspired by military sets, we have duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect.
Mechanical speedometer has 5/8-18 threaded cable input with .104":x.104" drive tang (standard aftermarket)
Speedometer, 3-3/8" mechanical
Fuel gauge 2-1/16", 0-90 ohm factory match
Water temperature gauge 2-1/16:
Oil pressure gauge 2-1/16"
Oil pressure and water temperature senders
Mounting hardware for gauges
For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping & delivery information, please contact the Speedway Motors Customer Experience Center.
ChartsInstallation Instructions (PDF)
- This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
