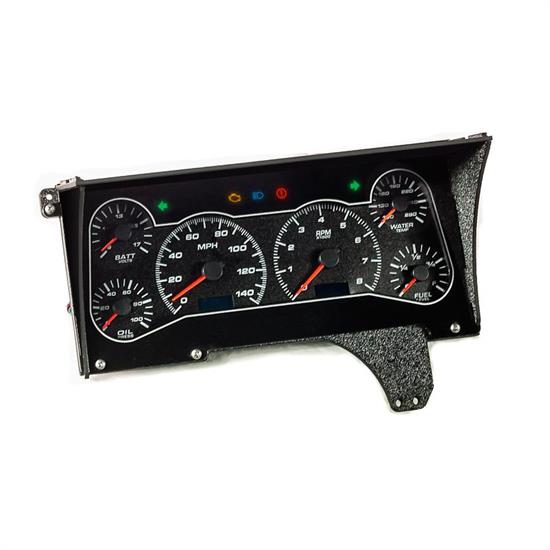

New Vintage USA 78211-01 6 Gauge Perform ll Blk 78-87 Monte Carlo
Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.
They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer select able inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with fuel tank sender dampening. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.
Speedometer, Programmable electronic 140 MPH
Tachometer, Programmable electronic, 8,000 RPM
Fuel level 0-90 ohm factory match
Water temperature gauge
Oil pressure gauge
Oil pressure and water temperature senders
Mounting hardware for gauges
Will not fit sweep style dash (coming soon)
Requires some minor dash trimming (not visible when installed, see installation instructions
Not plug-and play, requires standard gauge wiring to plug (see installation instructions)
May require speed sender-check your application (Speed sender not included)
ChartsInstallation Instructions (PDF)
- This product is discontinued.
- This item ships directly from the manufacturer. It may take an additional business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
- This item 2767821101 is made to order. It will be shipped from our warehouse when it is produced.
