Product Summary

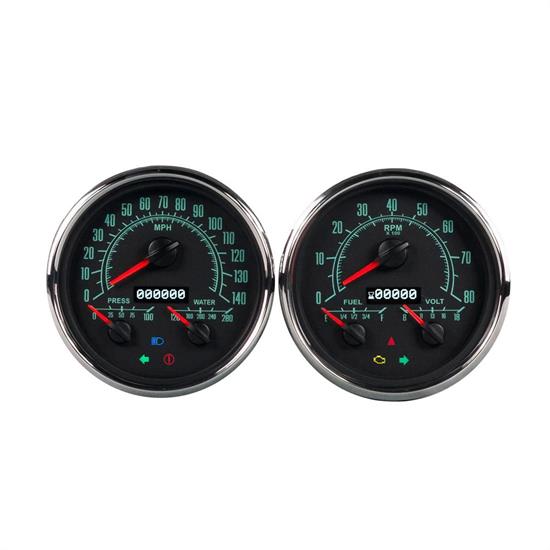

Universal Fit, Analog Gauge Series, Black, Polished

  • Includes a 4-3/8" Speedometer (140 MPH) with water temp and oil pressure
  • The 4-3/8" Tachometer (8,000 RPM) comes with a programmable fuel gauge and voltmeter
  • Has AMP plug connectors with color coded wiring harness
  • Features fully programmable inputs, displays and high-tech OLED screens
  • The programmable fuel gauge has virtually every setting for most fuel senders

Key Specs

MFG. Part #69257-01
BrandNew Vintage USA
Gauge SeriesAnalog
Gauge Set Design3-In-One

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

New Vintage USA 69257-01 Details

NVU 1969 Series are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels.  Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must.  Perfect for any 60s, 70s, musclecar, gasser, pro-touring dash gauges.

1969 Series 3-1 gauges use NVU's exclusive Phoenix technology featuring fully programmable inputs, displays and high-tech OLED screens.

Programmable speedometer is set up in minutes and can operate via any OE or aftermarket speed sender, PCM (computer) or GPS antenna. Programmable fuel gauge has virtually every setting for most fuel senders, no more dropping the tank. Tachometer has interface for easy set up to virtually and ignition system. Deadfronted (hidden) indicators with up to 6 lights come standard along with LED backlighting and lit pointers.  Installation is easy with our new AMP plug connections, only 1 plug per gauge for all functions.

Kits include:

  • 4-3/8" Speedometer (140 MPH) with water temp and oil pressure
  • 4-3/8" Tachometer (8,000 RPM) with programmable fuel gauge and voltmeter
  • Backclamps
  • AMP plug connectors with color coded wiring harness
  • Oil pressure sender (240-33 ohm)
  • Temperature sender (NVU hi match)
  • Hardware kit
  • Bushing kit
  • Detailed instructions



For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

Charts

New Vintage USA 69257-01 Specifications

KEY SPECS
MFG. Part #69257-01
BrandNew Vintage USA
Gauge SeriesAnalog
Gauge Set Design3-In-One
GENERAL
Speedway Motors Catalog Part #276-6925701
Gauge Face ColorBlack
Bezel FinishPolished
LightedYes
Lighting TypeLED
Needle ColorOrange
Lettering ColorGreen
Speedometer IncludedYes
Tachometer IncludedYes
Oil Pressure Gauge IncludedYes
Water Temperature Gauge IncludedYes
Fuel Pressure Gauge IncludedNo
Fuel Level Gauge IncludedYes
Volt Gauge IncludedYes
Ammeter Gauge IncludedNo
Odometer Gauge IncludedYes
Includes Mounting Bracket(s)Yes
Hardware IncludedYes
Fuel Sender IncludedNo
Speed Sender IncludedNo
Oil Pressure Sender IncludedYes
Turn Signals IncludedYes
Bezel IncludedYes
Temperature Sensor Bung IncludedNo
NotesDigital OLED odometer display.
Sold in QuantityKit
